Removal

PARKING BRAKE: PARKING BRAKE CABLE: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

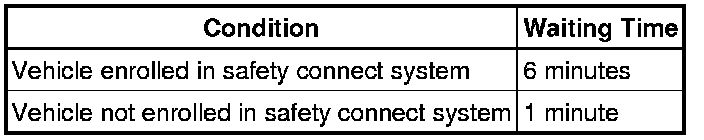

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE REAR CONSOLE BOX ASSEMBLY

(a) w/ Refrigerated Cool Box:

Remove the rear console box sub-assembly Removal.

(b) w/o Refrigerated Cool Box:

Remove the rear console box sub-assembly Removal.

3. REMOVE NO. 1 PARKING BRAKE CABLE ASSEMBLY

(a) Remove the No. 1 parking brake cable assembly Removal.

4. REMOVE FUEL TANK SUB-ASSEMBLY

(a) Remove the fuel tank sub-assembly Removal.

5. REMOVE NO. 2 PARKING BRAKE SHOE ASSEMBLY WITH PARKING BRAKE SHOE LEVER

HINT
Refer to the procedures up to "Remove No. 2 Parking Brake Shoe Assembly with Parking Brake Shoe Lever" Disassembly.

6. REMOVE NO. 2 PARKING BRAKE CABLE ASSEMBLY

(a) Remove the 2 bolts and disconnect the No. 2 parking brake cable assembly from the backing plate.





(b) Remove the No. 1 parking brake cable heat insulator.

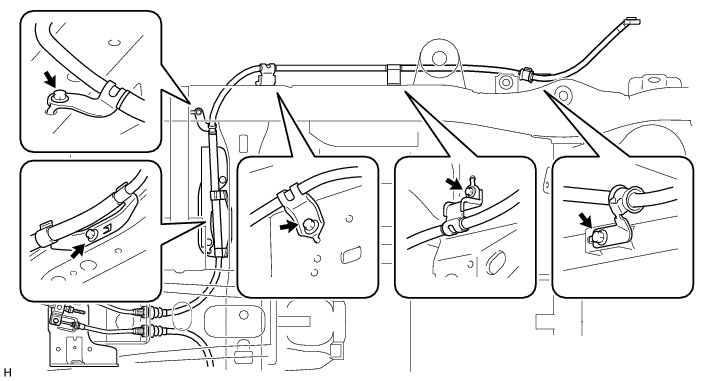

(c) Remove the 5 bolts from the No. 2 parking brake cable assembly.





(d) Remove the clip and disconnect the No. 2 parking brake cable assembly from the parking brake equalizer.





Text in Illustration





(e) Pinch the claws of the No. 2 parking brake cable and push the cable outside of the vehicle slightly.





7. REMOVE NO. 3 PARKING BRAKE CABLE ASSEMBLY

(a) Remove the 2 bolts and disconnect the No. 3 parking brake cable assembly from the backing plate.

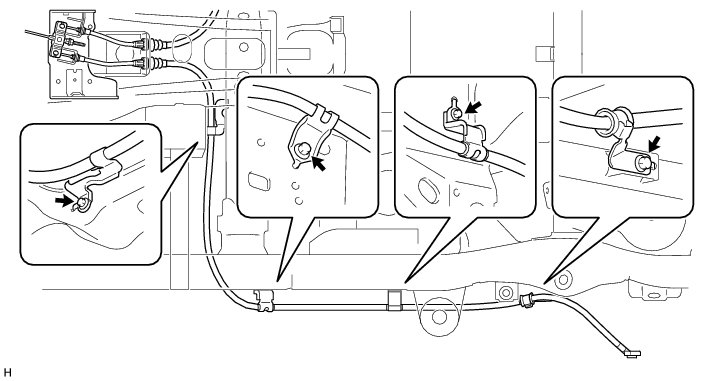

(b) Remove the 4 bolts from the No. 3 parking brake cable assembly.





(c) Remove the clip and disconnect the parking brake cable assembly No. 3 from the parking brake equalizer.





Text in Illustration





(d) Pinch the claws of the No. 3 parking brake cable and push the cable outside of the vehicle slightly.
