Initial Inspection and Diagnostic Overview

CRUISE CONTROL: LANE DEPARTURE ALERT SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT
* Use these procedures to troubleshoot the lane departure alert system.
* *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP

NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE

Standard voltage:

11 to 14 V

If the voltage is below 11 V, recharge or replace the battery before proceeding.

NEXT -- Continue to next step.

3. CHECK COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM*

(a) Use the Techstream to check if the CAN communication system is functioning normally.

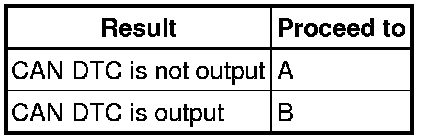

Result





B -- Go to CAN COMMUNICATION SYSTEM Diagnosis System
A -- Continue to next step.

4. CHECK FOR DTC*

(a) Check for DTCs Reading and Clearing Diagnostic Trouble Codes.

(b) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(c) Recheck for DTCs. Based on the DTCs output in the first step, try to force output of the lane departure alert system DTCs by simulating the conditions indicated by the DTCs.

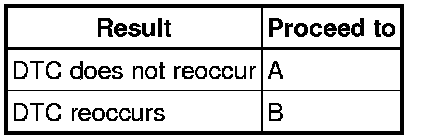

Result





B -- Go to DIAGNOSTIC TROUBLE CODE CHART Power Source Circuit
A -- Continue to next step.

5. PROBLEM SYMPTOMS TABLE

(a) Refer to Problem Symptoms Table Symptom Related Diagnostic Procedures.

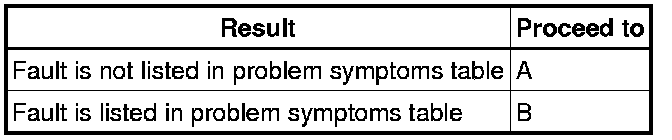

Result





B -- Go to step 8
A -- Continue to next step.

6. OVERALL ANALYSIS AND TROUBLESHOOTING*

(a) Terminals of ECU Pinout Values and Diagnostic Parameters

(b) Data List / Active Test Scan Tool Testing and Procedures

NEXT -- Continue to next step.

7. ADJUST, REPAIR OR REPLACE

NOTICE:
When the lane recognition camera sensor assembly is replaced with a new one, adjustment of the camera sensor beam axis must be performed Adjustments.

NEXT -- Continue to next step.

8. CONFIRMATION TEST

NEXT -- END
