INSTALLATION (To 08/2009): Installation

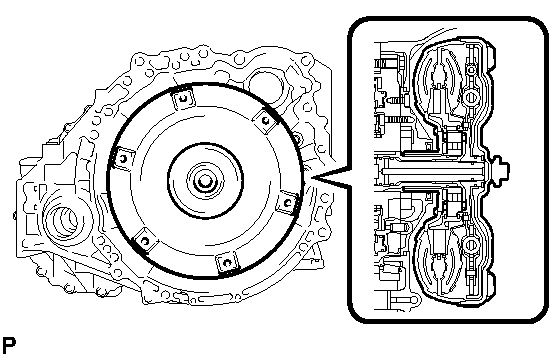

1. Engage the splines of the input shaft and turbine runner.
   Fig 1: Identifying Splines, Input Shaft & Turbine Runner

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

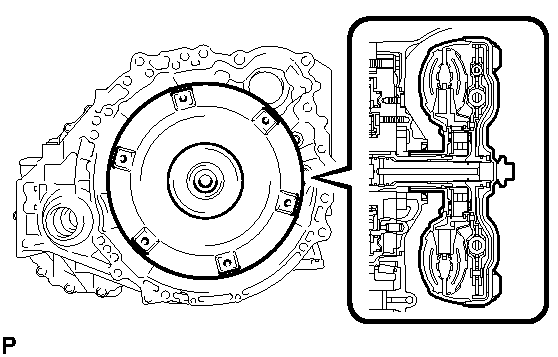

2. Engage the splines of the stator shaft and the stator while turning the torque converter clutch assembly.
   Fig 2: Engaging Splines Of Stator Shaft And Stator While Turning Torque Converter Clutch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   If the stator shaft splines are difficult to engage with the stator splines, move the torque converter back approximately 10 mm (0.393 in.) and engage the splines while rotating the torque converter.

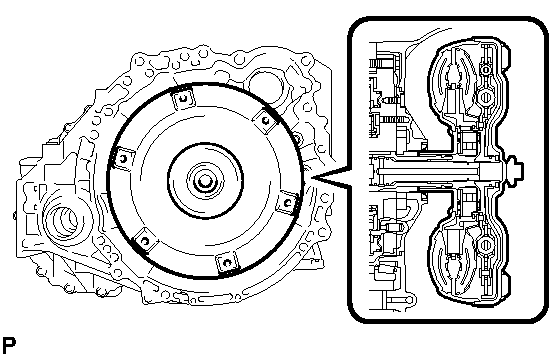

3. Turn the torque converter clutch assembly to engage the key of the oil pump drive gear into the slot on the torque converter clutch assembly.
   Fig 3: Engaging Key Of Oil Pump Drive Gear Into Slot On Torque Converter Clutch Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

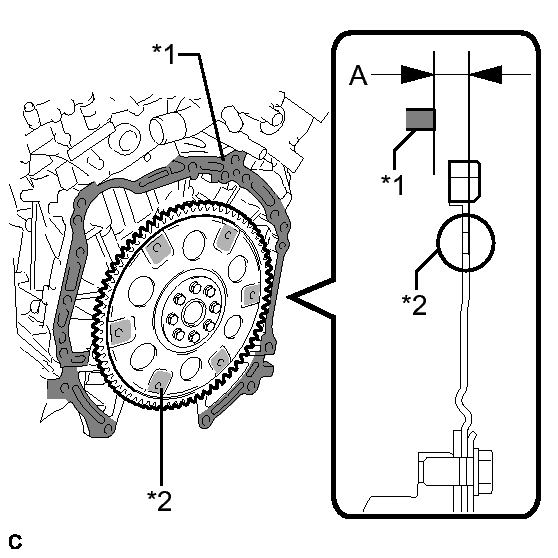

4. Using a vernier caliper and a straightedge, measure dimension "A" between the transaxle fitting surface of the engine*1 and the torque converter fitting surface of the drive plate*2. (#)
   Fig 4: Identifying Dimension "A" Between Transaxle Fitting Surface Of Engine*1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   Make sure to deduct the thickness of the straightedge.

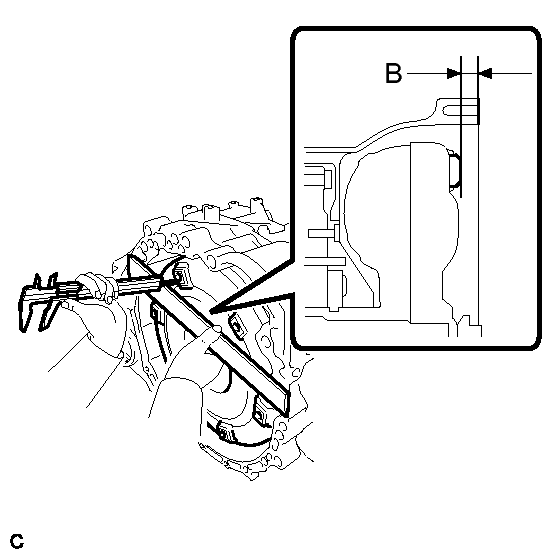

5. Using a vernier caliper and a straightedge, measure dimension "B" shown in the illustration and check that "B" is greater than "A" (measured in step (#)).
   Fig 5: Identifying Dimension "B" Using Vernier Caliper & Straightedge

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard

   A + 1 mm (0.0394 in.) or more

   NOTE:

   • Make sure to deduct the thickness of the straightedge.
   • If the transaxle is installed to the engine with the torque converter not sufficiently inserted, the torque converter may be damaged.

   HINT:

   If a U660E is used with a 2GR-FE, the standard installation depth is 14 mm (0.551 in.) or more.

1. Apply ATF to a new O-ring and install it to the speedometer driven hole (ATM) cover sub-assembly.
2. Install the speedometer driven hole (ATM) cover sub-assembly to the automatic transaxle assembly with the bolt.
   Fig 6: Identifying Speedometer Driven Hole (ATM) Cover & Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

1. Install the No. 1 transmission control cable bracket to the automatic transaxle assembly with the 2 bolts.
   Fig 7: Identifying No. 1 Transmission Control Cable Bracket & Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

1. Install the 5 wire harness clamp brackets to the automatic transaxle assembly with the 5 bolts.
   Fig 8: Identifying Clamp Brackets & Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

1. Using an E8 "TORX" socket wrench, install the stud bolt.
   Fig 9: Identifying Front Engine Mounting Bracket, Bolts & Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   TEXT IN ILLUSTRATION



   *1

   Stud Bolt

   Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

2. Install the front engine mounting bracket with the 2 bolts and nut.

   Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

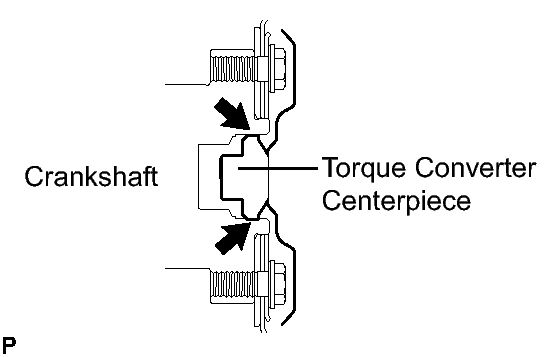

1. Apply clutch spline grease to the round of the crankshaft contact surface with the torque converter centerpiece.
   Fig 10: Identifying Crankshaft & Torque Converter Center Piece

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Clutch spline grease

   Toyota Genuine Clutch Spline Grease or equivalent

   Maximum spread

   About 1 g (0.0353 oz.) Centerpiece

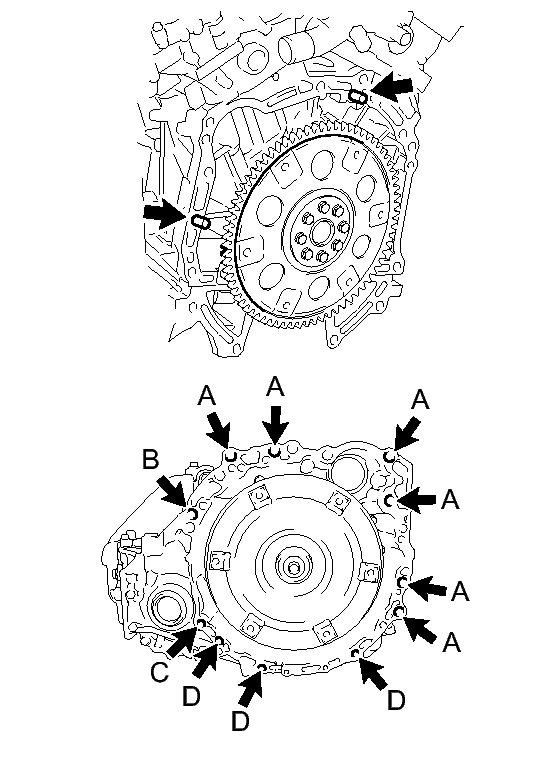

2. Keeping the engine and automatic transaxle assembly in a horizontal position, align the knock pins with each hole on the automatic transaxle assembly and tighten the 11 bolts shown in the illustration.
   Fig 11: Identifying Automatic Transaxle Assembly Bolts Tightening Torque

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt A

   Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

   Bolt B

   Torque: 64 N*m (653 kgf*cm, 47 ft.*lbf)

   Bolt C

   Torque: 46 N*m (469 kgf*cm, 34 ft.*lbf)

   Bolt D

   Torque: 43 N*m (439 kgf*cm, 32 ft.*lbf)

   NOTE:

   • Confirm that the 2 knock pins are on the transaxle contact surface of the engine cylinder block before transaxle installation.
   • Do not forcibly pry on the automatic transaxle assembly.
   • Check that the torque converter rotates.

   HINT:

   Bolt length:

   • Bolt A: 55 mm (2.17 in.)
   • Bolt B: 50 mm (1.97 in.)
   • Bolt C: 41 mm (1.61 in.)
   • Bolt D: 33 mm (1.30 in.)

1. Connect the 6 wire harness clamps and 2 connectors.
   Fig 12: Identifying Wire Harnesses, Bolts, Connector & Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 2 wire harnesses with the 2 bolts.

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

HINT:

See the steps from "Install Engine Assembly with Transaxle" through "Install Engine Room Side Cover LH". Refer to INSTALLATION - Step 26 .
