REMOVAL (To 8/2009): Removal
NOTE:
- Be sure to align the front wheels straight ahead when removing and installing the steering gear assembly.
- When disconnecting the steering intermediate shaft assembly and the pinion shaft of the steering gear assembly, be sure to place matchmarks before servicing.
- PRECAUTION (w/ Air Suspension) NOTE:
Be sure to read Precaution thoroughly before servicing. Refer to PRECAUTION .
- PLACE FRONT WHEELS FACING STRAIGHT AHEAD
- REMOVE FRONT WHEELS
- SECURE STEERING WHEEL

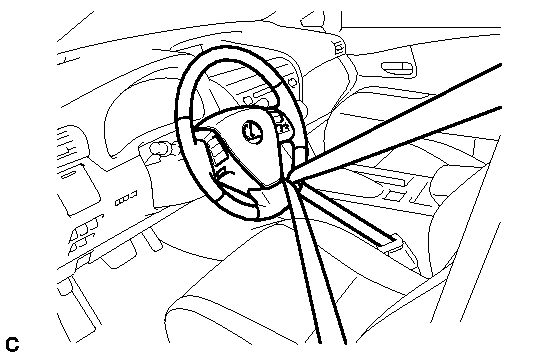

- Secure the steering wheel with the seat belt in order to prevent it from rotating.
HINT:
This operation is necessary to prevent damage to the spiral cable.
- Secure the steering wheel with the seat belt in order to prevent it from rotating.
- SEPARATE STEERING INTERMEDIATE SHAFT ASSEMBLY
- Put matchmarks on the steering intermediate shaft assembly and steering link assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION*1 Matchmark NOTE:Do not separate the steering intermediate shaft assembly from the steering link assembly.
- Remove the bolt.
- Separate the steering intermediate shaft assembly from the steering link assembly.
- Put matchmarks on the steering intermediate shaft assembly and steering link assembly.
- SEPARATE TIE ROD ASSEMBLY LH

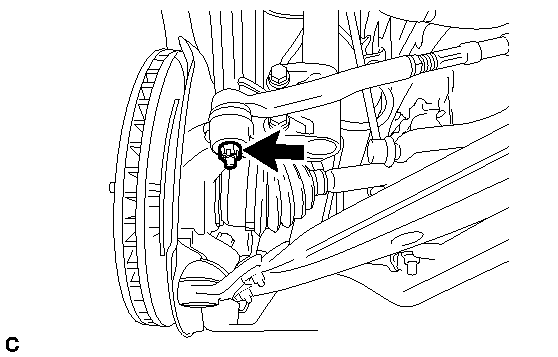

- Remove the cotter pin and nut.
- Install SST to the tie rod end.
- SST: 09960-20010
- 09961-02060
NOTE:Make sure that the upper ends of the tie rod end and SST are aligned.
- SST: 09960-20010

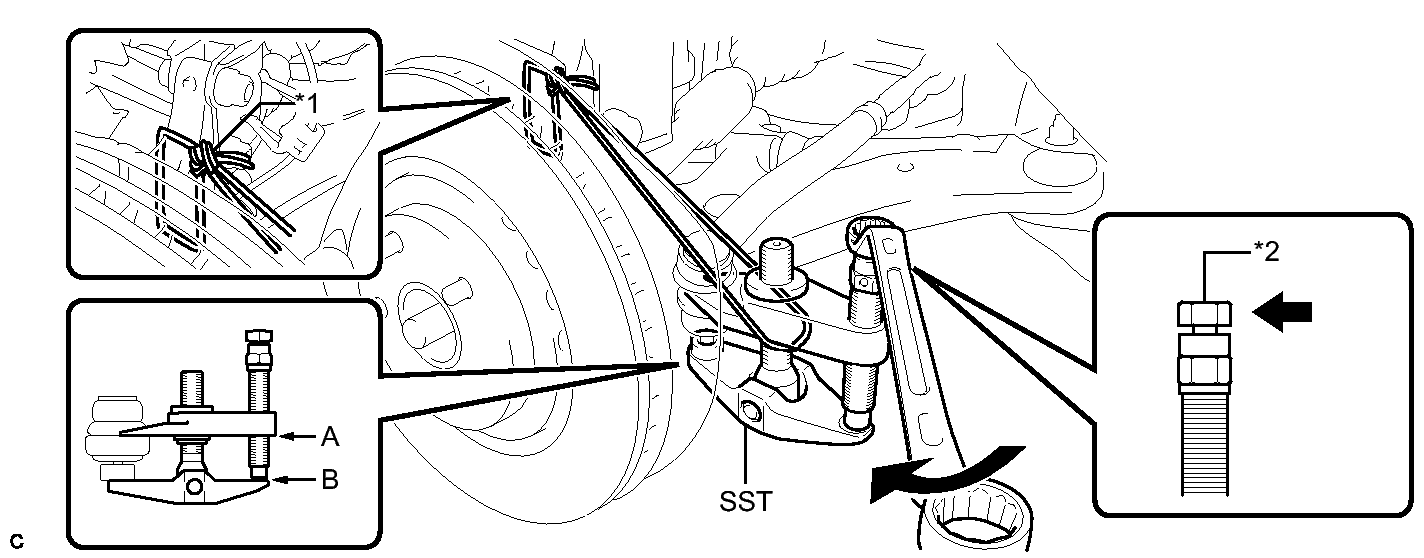

- Using SST, separate the tie rod end from the steering knuckle.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION*1 Tie the string without allowing for any slack. *2 Place the wrench here. - SST: 09960-20010
- 09961-02010
NOTE:- When securing SST to the steering knuckle, be sure to tighten SST using a string to prevent it from falling.
- Install SST so that A and B are parallel.
- Be sure to place a wrench on the part indicated in the illustration.
- Do not damage the front disc brake dust cover.
- Do not damage the ball joint dust cover.
- Do not damage the steering knuckle.
- SST: 09960-20010
- SEPARATE TIE ROD ASSEMBLY RH
HINT:
Perform the same procedure as for the LH side.
- REMOVE ENGINE ASSEMBLY WITH TRANSAXLE
HINT:
Refer to the procedure up to Remove Engine Assembly with Transaxle. Refer to REMOVAL .
- REMOVE NO. 1 FRONT STABILIZER BRACKET LH . Refer to REMOVAL - Step 4
- REMOVE NO. 1 FRONT STABILIZER BRACKET RH
HINT:
Perform the same procedure as for the LH side.
- REMOVE FRONT STABILIZER BAR
- REMOVE STEERING LINK ASSEMBLY

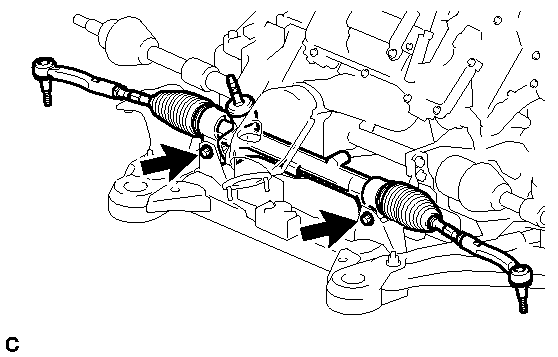

- Remove the 2 bolts, 2 nuts and steering link assembly.
NOTE:
Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.
- Remove the 2 bolts, 2 nuts and steering link assembly.

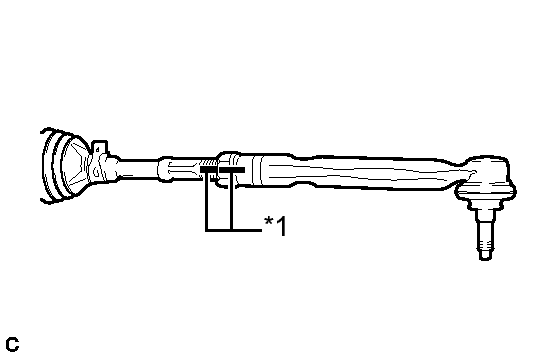

- REMOVE TIE ROD ASSEMBLY LH
- REMOVE TIE ROD ASSEMBLY RH
HINT:
Perform the same procedure as for the LH side.
