REMOVAL (To 8/2009): Removal
- PRECAUTION (w/ Navigation System for HDD) NOTE:
After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 60 seconds before disconnecting the cable from the negative (-) battery terminal.
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTE:When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- REMOVE TONNEAU COVER ASSEMBLY . Refer to REMOVAL - Step 25
- REMOVE DECK BOARD SUB-ASSEMBLY . Refer to REMOVAL - Step 19
- REMOVE NO. 4 REAR FLOOR BOARD (for LH Side)
- for Compact Spare Tire:
- Remove the No. 4 rear floor board. Refer to REMOVAL - Step 21 .
- for Compact Spare Tire:
- REMOVE NO. 4 REAR FLOOR BOARD (for LH Side)
- for Full Size Spare Tire:
- Remove the No. 4 rear floor board. Refer to REMOVAL - Step 22 .
- for Full Size Spare Tire:
- REMOVE REAR DECK FLOOR BOX (for LH Side) . Refer to REMOVAL - Step 26
- REMOVE DECK SIDE TRIM BOX LH (for LH Side)
- for Compact Spare Tire:
- Remove the deck side trim box LH. Refer to REMOVAL - Step 27 .
- for Compact Spare Tire:
- REMOVE DECK SIDE TRIM BOX LH (for LH Side)
- for Full Size Spare Tire:
- Remove the deck side trim box LH. Refer to REMOVAL - Step 28 .
- for Full Size Spare Tire:
- REMOVE FRONT DECK FLOOR BOX (for LH Side) . Refer to REMOVAL - Step 31
- REMOVE SPARE WHEEL COVER ASSEMBLY (for RH Side)
- for Compact Spare Tire:
- Remove the spare wheel cover assembly. Refer to REMOVAL - Step 20 .
- for Compact Spare Tire:
- REMOVE NO. 3 REAR FLOOR BOARD (for RH Side)
- for Compact Spare Tire:
- Remove the No. 3 rear floor board. Refer to REMOVAL - Step 23 .
- for Compact Spare Tire:
- REMOVE NO. 3 REAR FLOOR BOARD (for RH Side)
- for Full Size Spare Tire:
- Remove the No. 3 rear floor board. Refer to REMOVAL - Step 24 .
- for Full Size Spare Tire:
- REMOVE DECK SIDE TRIM BOX RH (for RH Side)
- for Compact Spare Tire:
- Remove the deck side trim box RH. Refer to REMOVAL - Step 29 .
- for Compact Spare Tire:
- REMOVE DECK SIDE TRIM BOX RH (for RH Side)
- for Full Size Spare Tire:
- Remove the deck side trim box RH. Refer to REMOVAL - Step 30 .
- for Full Size Spare Tire:
- REMOVE REAR SEAT ASSEMBLY LH (for LH Side)
- Remove the rear seat assembly LH. Refer to REMOVAL .
- REMOVE REAR SEAT ASSEMBLY RH (for RH Side)
- Remove the rear seat assembly RH. Refer to REMOVAL .
- REMOVE REAR DOOR SCUFF PLATE . Refer to REMOVAL - Step 7
- REMOVE REAR FLOOR FINISH PLATE . Refer to REMOVAL - Step 32
- REMOVE REAR FLOOR FINISH SIDE PLATE . Refer to REMOVAL - Step 33
- REMOVE REAR SEAT SIDE COVER . Refer to REMOVAL - Step 35
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for LH Side) . Refer to REMOVAL - Step 36
- REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (for RH Side) . Refer to REMOVAL - Step 45
- REMOVE ROPE HOOK ASSEMBLY . Refer to REMOVAL - Step 37
- REMOVE RECLINING REMOTE CONTROL BEZEL . Refer to REMOVAL - Step 38
- REMOVE HEIGHT CONTROL SWITCH (for RH Side)
- w/ Air Suspension:
- Remove the height control switch. Refer to REMOVAL - Step 3 .
- w/ Air Suspension:
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (for LH Side) . Refer to REMOVAL - Step 39
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (for RH Side) . Refer to REMOVAL - Step 49
- DISCONNECT REAR SEAT OUTER BELT ASSEMBLY

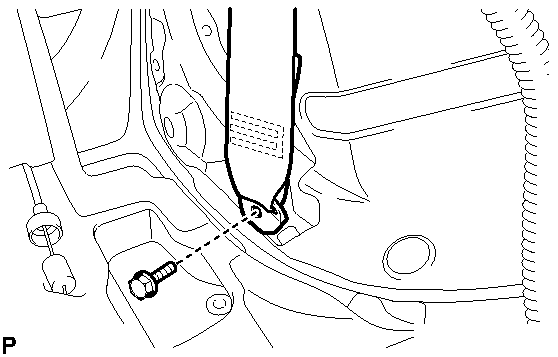

- Remove the bolt and disconnect the floor end of the rear seat outer belt assembly.
- REMOVE ROOF SIDE INNER GARNISH ASSEMBLY . Refer to REMOVAL - Step 41
- REMOVE REAR SEAT OUTER BELT ASSEMBLY

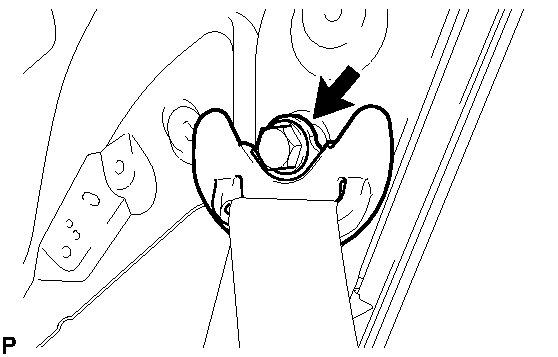

- Remove the bolt and disconnect the shoulder anchor of the rear seat outer belt assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
When the bolt is removed, the shoulder anchor of the rear seat outer belt assembly also removed.

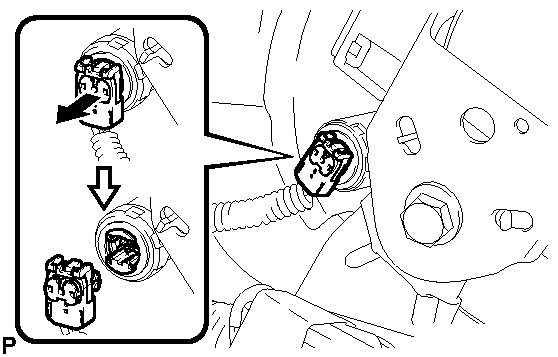

- Using a screwdriver, pull out the locking button in the direction shown by the arrow to release the lock, and disconnect the pretensioner connector as shown in the illustration.
NOTE:
Tape the screwdriver tip before use.

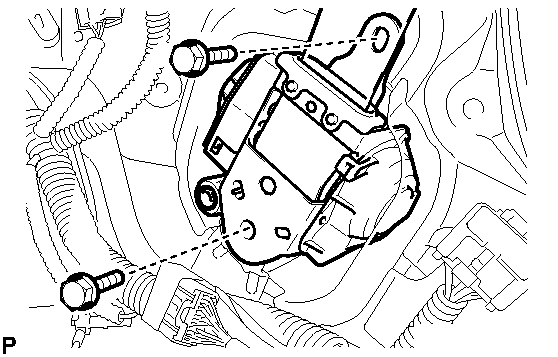

- Remove the 2 bolts and rear seat outer belt assembly.
- Remove the bolt and disconnect the shoulder anchor of the rear seat outer belt assembly.
