INSTALLATION (To 8/2009): Installation

INSTALL GENERATOR ASSEMBLY
1. Install the wire harness clamp stay with the bolt.

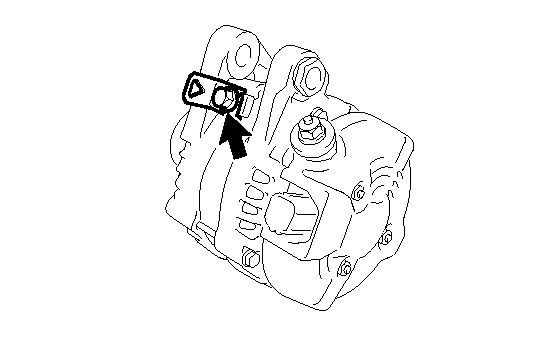

  Fig 1: Locating Wire Harness Clamp With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.4 N*m (85 kgf*cm, 74 in.*lbf)
2. Connect the wire harness clamp.

  Fig 2: Identifying Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the generator assembly to the cylinder block with the generator bracket, bolt and nut.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
4. Install the 2 bolts.

  Fig 3: Locating Generator Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)
5. Connect the generator connector to the generator assembly.

  Fig 4: Identifying Generator Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the generator wire with the nut.
  Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)
7. Install the terminal cap.
8. Connect the wire harness clamps.
9. Connect the magnetic clutch connector to the compressor and magnetic clutch.
INSTALL V-RIBBED BELT
HINT:

Refer to INSTALLATION .
INSTALL RADIATOR ASSEMBLY WITH FAN SHROUD AND FAN MOTOR
HINT:

Refer to INSTALLATION .
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSTALL V-BANK COVER SUB-ASSEMBLY . Refer to INSTALLATION - Step 113
INSTALL FRONT BUMPER ASSEMBLY
HINT:

Refer to INSTALLATION .
