DTC P0AE6-225: Hybrid Battery Precharge Contactor Control Circuit Low: Wiring Diagram

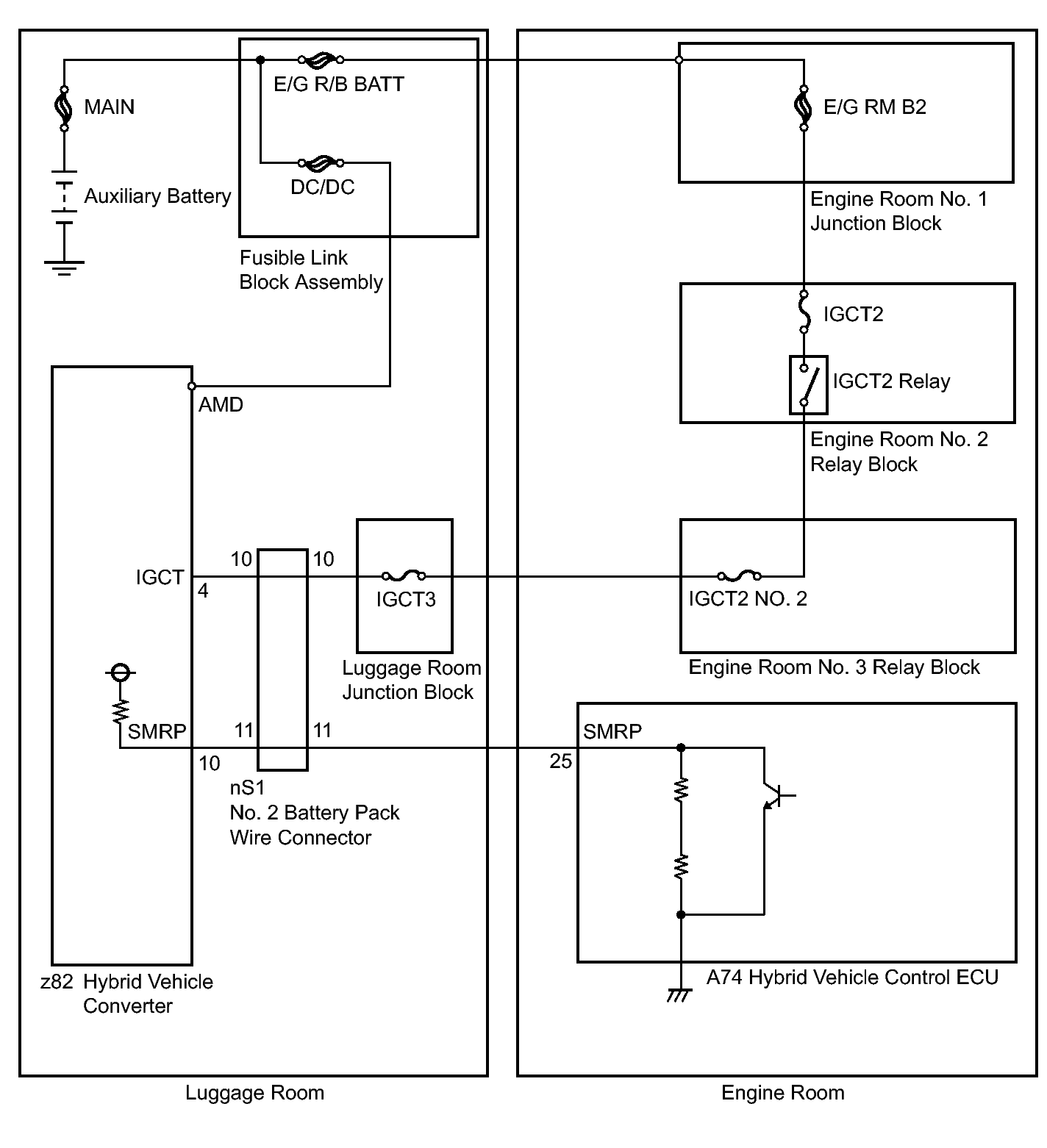

Fig 1: Hybrid Vehicle Control Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

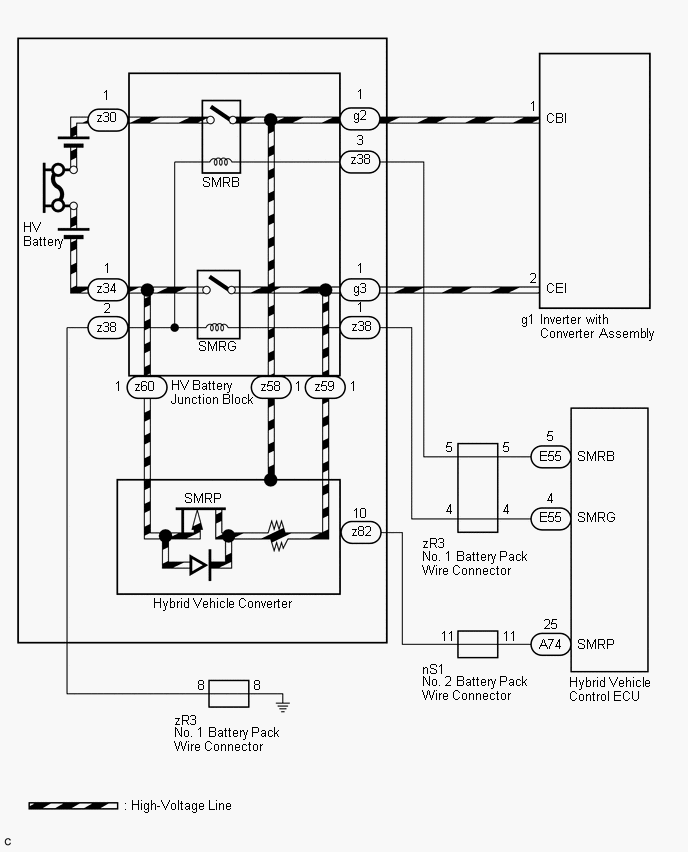

Fig 2: Hybrid Vehicle Control Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
