DTC P0AE6-225: Hybrid Battery Precharge Contactor Control Circuit Low: Procedure

  1. CHECK DTC OUTPUT (HV)
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Select the following menu items: Powertrain / Hybrid Control / Trouble Codes.
    4. Check if DTCs are output.
    5. Refer to "Proceed to" in the table below to perform each inspection.

      Result

      Item to inspect P0A08-264 P0A09-265 P0A09-591 P2519-766 P0AE6-225 P1507-207 Proceed to
      AMD and IGC2 open circuit and SMRP system inspections - - - - ◦ - A
      Only AMD open circuit inspection ◦ - ◦ ◦ ◦ ◦ B
      ◦ - - ◦ ◦ ◦
      ◦ - - - ◦ ◦
      Only IGC2 open circuit inspection - ◦ ◦ ◦ ◦ ◦ C
      - ◦ - - ◦ ◦
      - ◦ - ◦ ◦ ◦
      AMD and IGC2 open circuit inspections - - ◦ ◦ ◦ ◦ D
      - - - ◦ ◦ ◦

      HINT:

      • ◦ : DTCs that are output
      • - : DTCs that are not output

    D → See step   18

    C → See step   14

    B → See step   12

    A: Go to next step

  2. CHECK FUSIBLE LINK AND FUSE
    1. Check the fuse (IGCT2 NO. 2) in the engine room No. 3 relay block, and the fusible link (MAIN) that is installed at the auxiliary battery, for improper installation and for an open circuit.
      Fig 1: Identifying IGCT2 NO. 2 Fuse
      GTY147633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The fuse and fusible link are installed securely. There are no open circuits in the fusible link or fuse.

    NG → REPLACE FUSIBLE LINK AND FUSE

    OK: Go to next step

  3. CHECK FUSE (IGCT3 FUSE)
    1. Check the fuse (IGCT3) in the luggage room junction block assembly for improper installation and for an open circuit.
      Fig 2: Identifying IGCT3 Fuse
      GTY127688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The fuse is installed securely. There is no open circuit in the fuse.

    NG → REPLACE FUSE (IGCT3 FUSE)

    OK: Go to next step

  4. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)
    1. Check the connections of the hybrid vehicle control ECU connectors.

      OK

      The connectors are connected securely and there are no contact problems.

    NG → CONNECT SECURELY

    OK: Go to next step

  5. CHECK HYBRID VEHICLE CONVERTER (AMD TERMINAL CONNECTION CONDITION)
    WARNING:

    Be sure to wear insulated gloves.

    1. Turn the power switch off.
    2. Remove the service plug grip. Refer to PRECAUTION .
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY) unless instructed by the repair information because this may cause a malfunction.

    3. Check the connection of the AMD terminal (hybrid vehicle converter side).
      Fig 3: Locating AMD Terminal
      GTY257395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The terminal is connected securely and there is no contact problem.

    4. Check for arc marks on the AMD terminals (hybrid vehicle converter side and vehicle wire harness side).

      Result

      Result Proceed to
      The terminals are connected securely and there are no contact problems. There are no arc marks. A
      The terminals are not connected securely and there is a contact problem. There are arc marks. B
      The terminals are not connected securely and there is a contact problem. There are no arc marks. C
      The terminals are connected securely and there are no contact problems. There are arc marks. B

    C → CONNECT SECURELY

    B → REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    A: Go to next step

  6. CHECK TERMINAL VOLTAGE (AMD TERMINAL)
    1. Turn the power switch off.
      Fig 4: Locating AMD Terminal
      GTY257395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      AMD terminal - Body ground Power switch off 11 to 14 V

    NG → See step   24

    OK: Go to next step

  7. CHECK HARNESS AND CONNECTOR (IGC2 VOLTAGE)
    1. Disconnect the No. 2 battery pack wire connector.
    2. Turn the power switch on (IG).
      Fig 5: Identifying No. 2 Battery Pack Wire Connector
      GTY281362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the voltage according to the value(s) in the table below.
      Fig 6: Identifying NS1 No. 2 Battery Pack Wire Connector
      GTY261213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      nS1-10 (IGCT) - Body ground Power switch on (IG) 11 to 14 V

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  8. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU)
    1. Turn the power switch off.
    2. Measure the resistance according to the value(s) in the table below.
      Fig 7: Identifying NS1 No. 2 Battery Pack Wire Connector
      GTY274251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance

      Tester Connection Switch Condition Specified Condition
      nS1-11 (SMRP) - Body ground Power switch off 370 to 430 kΩ

    NG → See step   11

    OK: Go to next step

  9. CHECK HARNESS AND CONNECTOR (NO. 2 BATTERY PACK WIRE CONNECTOR - HYBRID VEHICLE CONVERTER)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY) unless instructed by the repair information because this may cause a malfunction.

      Fig 8: Locating NS1 No. 2 Battery Pack Wire Connector And Z82 Hybrid Vehicle Converter
      GTY274459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the low voltage connector from the hybrid vehicle converter.

      HINT:

      For the removal and installation procedures related to the low voltage connector of the hybrid vehicle converter. Refer to COMPONENTS .

    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      nS1-10 (IGCT) - z82-4 (IGCT) Power switch off Below 1 Ω
      nS1-11 (SMRP) - z82-10 (SMRP) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      nS1-10 (IGCT) or z82-4 (IGCT) - Body ground Power switch off 10 kΩ or higher
      nS1-11 (SMRP) or z82-10 (SMRP) - Body ground Power switch off 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  10. CHECK HYBRID VEHICLE CONVERTER
    1. Connect all the disconnected connectors.
      Fig 9: Identifying ZR3 No. 1 Battery Pack Wire Connector
      GTY271842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 10: Identifying NS1 No. 2 Battery Pack Wire Connector
      GTY256993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the power switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      nS1-11 (SMRP) - zR3-8 (GND) Power switch on (IG) 9 to 12 V

      HINT:

      Perform this inspection with the battery pack wire connectors connected.

    NG → See step   27

    OK → See step   26

  11. CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - NO. 2 BATTERY PACK WIRE CONNECTOR)
    1. Turn the power switch off.
    2. Disconnect connector A74 from the hybrid vehicle control ECU.
      Fig 11: Locating A74 Hybrid Vehicle Control ECU And NS1 No. 2 Battery Pack Wire Connectors
      GTY267303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      A74-25 (SMRP) - nS1-11 (SMRP) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      A74-25 (SMRP) or nS1-11 (SMRP) - Body ground and other terminals Power switch off 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   26

  12. CHECK HYBRID VEHICLE CONVERTER (AMD TERMINAL CONNECTION CONDITION)
    WARNING:

    Be sure to wear insulated gloves.

    1. Turn the power switch off.
    2. Remove the service plug grip. Refer to PRECAUTION .
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY) unless instructed by the repair information because this may cause a malfunction.

    3. Check the connection of the AMD terminal (hybrid vehicle converter side).
      Fig 12: Locating AMD Terminal
      GTY257395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The terminal is connected securely and there is no contact problem.

    4. Check for arc marks on the AMD terminals (hybrid vehicle converter side and vehicle wire harness side).

      Result

      Result Proceed to
      The terminals are connected securely and there are no contact problems. There are no arc marks. A
      The terminals are not connected securely and there is a contact problem. There are arc marks. B
      The terminals are not connected securely and there is a contact problem. There are no arc marks. C
      The terminals are connected securely and there are no contact problems. There are arc marks. B

    C → CONNECT SECURELY

    B → REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    A: Go to next step

  13. CHECK TERMINAL VOLTAGE (AMD TERMINAL)
    1. Turn the power switch off.
      Fig 13: Locating AMD Terminal
      GTY257395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      AMD terminal - Body ground Power switch off 11 to 14 V

    NG → See step   24

    OK → See step   27

  14. CHECK FUSE
    1. Check the fuse (IGCT2 NO. 2) in the engine room No. 3 relay block for improper installation and for an open circuit.
      Fig 14: Identifying IGCT2 NO. 2 Fuse
      GTY147633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The fuse is installed securely. There is no open circuit in the fuse.

    NG → REPLACE FUSE (IGCT2 NO. 2 FUSE)

    OK: Go to next step

  15. CHECK FUSE (IGCT NO. 3 FUSE)
    1. Check the fuse (IGCT3) in the luggage room junction block assembly for improper installation and for an open circuit.
      Fig 15: Identifying IGCT3 Fuse
      GTY127688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The fuse is installed securely. There is no open circuit in the fuse.

    NG → REPLACE FUSE (IGCT3 FUSE)

    OK: Go to next step

  16. CHECK HARNESS AND CONNECTOR (IGC2 VOLTAGE)
    1. Disconnect the No. 2 battery pack wire connector. Refer to REMOVAL .
    2. Turn the power switch on (IG).
      Fig 16: Identifying No. 2 Battery Pack Wire Connector
      GTY281362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the voltage according to the value(s) in the table below.
      Fig 17: Identifying NS1 No. 2 Battery Pack Wire Connector
      GTY261213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      nS1-10 (IGCT) - Body ground Power switch on (IG) 11 to 14 V

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  17. CHECK HARNESS AND CONNECTOR (NO. 2 BATTERY PACK WIRE CONNECTOR - HYBRID VEHICLE CONVERTER)
    WARNING:

    Be sure to wear insulated gloves.

    1. Turn the power switch off.

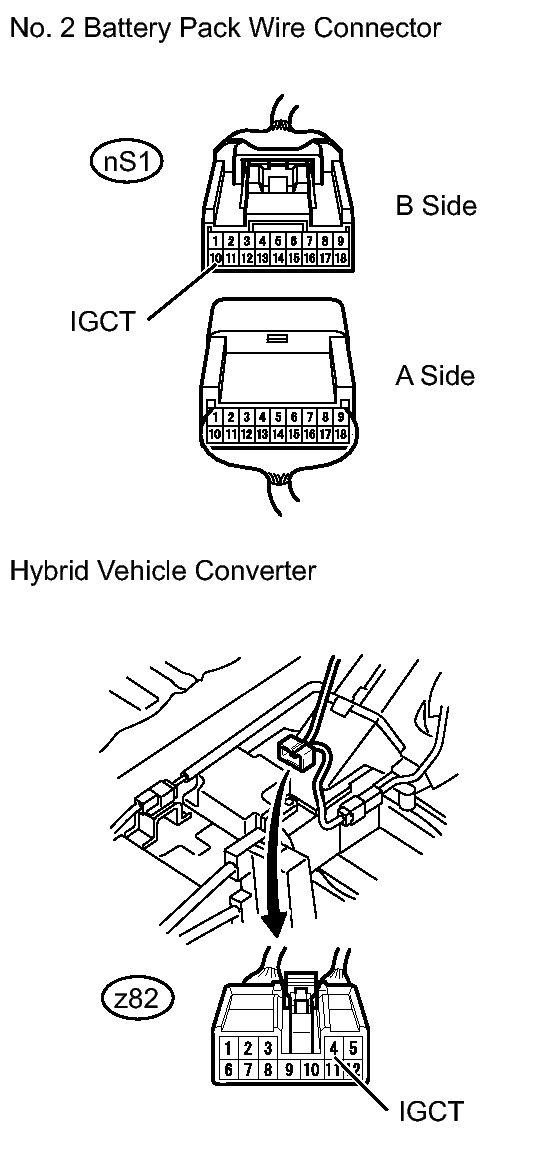

      Fig 18: Locating NS1 No. 2 Battery Pack Wire Connector And Z82 Hybrid Vehicle Converter Connectors
      GTY274460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the service plug grip. Refer to PRECAUTION .
    3. Disconnect the low voltage connector from the hybrid vehicle converter.

      HINT:

      For the removal and installation procedures related to the low voltage connector of the hybrid vehicle converter. Refer to COMPONENTS .

    4. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      nS1-10 (IGCT) - z38-4 (IGCT) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      nS1-10 (IGCT) or z38-4 (IGCT) - Body ground Power switch off 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   27

  18. CHECK FUSIBLE LINK AND FUSE
    1. Check the fuse (IGCT2 NO. 2) in the engine room No. 3 relay block, and the fusible link (MAIN) that is installed at the auxiliary battery, for improper installation and for an open circuit.
      Fig 19: Identifying IGCT2 NO. 2 Fuse
      GTY147633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The fuse and fusible link are installed securely. There are no open circuits in the fusible link or fuse.

    NG → REPLACE FUSIBLE LINK AND FUSE

    OK: Go to next step

  19. CHECK FUSE (IGCT NO. 3 FUSE)
    1. Check the fuse (IGCT3) in the luggage room junction block assembly for improper installation and for an open circuit.
      Fig 20: Identifying IGCT3 Fuse
      GTY127688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The fuse is installed securely. There is no open circuit in the fuse.

    NG → REPLACE FUSE (IGCT3 FUSE)

    OK: Go to next step

  20. CHECK HYBRID VEHICLE CONVERTER (AMD TERMINAL CONNECTION CONDITION)
    WARNING:

    Be sure to wear insulated gloves.

    1. Turn the power switch off.
    2. Remove the service plug grip. Refer to PRECAUTION .
      NOTE:

      After removing the service plug grip, do not turn the power switch on (READY) unless instructed by the repair information because this may cause a malfunction.

    3. Check the connection of the AMD terminal (hybrid vehicle converter side).
      Fig 21: Locating AMD Terminal
      GTY257395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK

      The terminal is connected securely and there is no contact problem.

    4. Check for arc marks on the AMD terminals (hybrid vehicle converter side and vehicle wire harness side).

      Result

      Result Proceed to
      The terminals are connected securely and there are no contact problems. There are no arc marks. A
      The terminals are not connected securely and there is a contact problem. There are arc marks. B
      The terminals are not connected securely and there is a contact problem. There are no arc marks. C
      The terminals are connected securely and there are no contact problems. There are arc marks. B

    C → CONNECT SECURELY

    B → REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    A: Go to next step

  21. CHECK TERMINAL VOLTAGE (AMD TERMINAL)
    1. Turn the power switch off.
      Fig 22: Locating AMD Terminal
      GTY257395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      AMD terminal - Body ground Power switch off 11 to 14 V

    NG → See step   24

    OK: Go to next step

  22. CHECK HARNESS AND CONNECTOR (IGC2 VOLTAGE)
    1. Disconnect the No. 2 battery pack wire connector.
    2. Turn the power switch on (IG).
      Fig 23: Identifying No. 2 Battery Pack Wire Connector
      GTY281362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the voltage according to the value(s) in the table below.
      Fig 24: Identifying NS1 No. 2 Battery Pack Wire Connector
      GTY261213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      Tester Connection Switch Condition Specified Condition
      nS1-10 (IGCT) - Body ground Power switch on (IG) 11 to 14 V

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  23. CHECK HARNESS AND CONNECTOR (NO. 2 BATTERY PACK WIRE CONNECTOR - HYBRID VEHICLE CONVERTER)
    WARNING:

    Be sure to wear insulated gloves.

    1. Check that the service plug grip is not installed.
      Fig 25: Locating NS1 No. 2 Battery Pack Wire Connector And Z82 Hybrid Vehicle Converter Connectors
      GTY274460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the low voltage connector from the hybrid vehicle converter.

      HINT:

      For the removal and installation procedures related to the low voltage connector of the hybrid vehicle converter. Refer to COMPONENTS .

    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      Tester Connection Switch Condition Specified Condition
      nS1-10 (IGCT) - z82-4 (IGCT) Power switch off Below 1 Ω

      Standard resistance (Check for short)

      Tester Connection Switch Condition Specified Condition
      nS1-10 (IGCT) or z82-4 (IGCT) - Body ground Power switch off 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   27

  24. CHECK AUXILIARY BATTERY (NEGATIVE TERMINAL)
    1. Turn the power switch off.
    2. Check the connection of the auxiliary battery negative terminal cable.

      OK

      The cable is connected securely and there are no contact problems.

    3. Check for arc marks on the auxiliary battery negative terminal cable.

      Result

      Result Proceed to
      The terminals are connected securely and there are no contact problems. There are no arc marks. A
      The terminals are not connected securely and there is a contact problem. There are arc marks. B
      The terminals are not connected securely and there is a contact problem. There are no arc marks. C
      The terminals are connected securely and there are no contact problems. There are arc marks. B

    C → CONNECT SECURELY

    B → REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

    A: Go to next step

  25. CHECK HARNESS AND CONNECTOR (AUXILIARY BATTERY NEGATIVE TERMINAL - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Switch Condition Specified Condition
      Auxiliary battery negative terminal (-) - Body ground Power switch off Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   28

  26. REPLACE HYBRID VEHICLE CONTROL ECU. Refer to  COMPONENTS
  27. REPLACE HYBRID VEHICLE CONVERTER. Refer to  COMPONENTS
  28. REPAIR OR REPLACE FRAME WIRE (AUXILIARY BATTERY NEGATIVE TERMINAL - AMD TERMINAL). Refer to  COMPONENTS
scientia non olet · About LEMON Manuals
