DTC P0ADB-227: Hybrid Battery Positive Contactor Control Circuit Low; DTC P0ADC-226: Hybrid Battery Positive Contactor Control Circuit High: Procedure

1. Turn the power switch off.
2. Disconnect the No. 1 battery pack wire connector. Refer to COMPONENTS .
   Fig 1: Identifying No. 1 Battery Pack Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect connector E55 from the hybrid vehicle control ECU.
4. Turn the power switch on (IG).
5. Measure the voltage according to the value(s) in the table below.

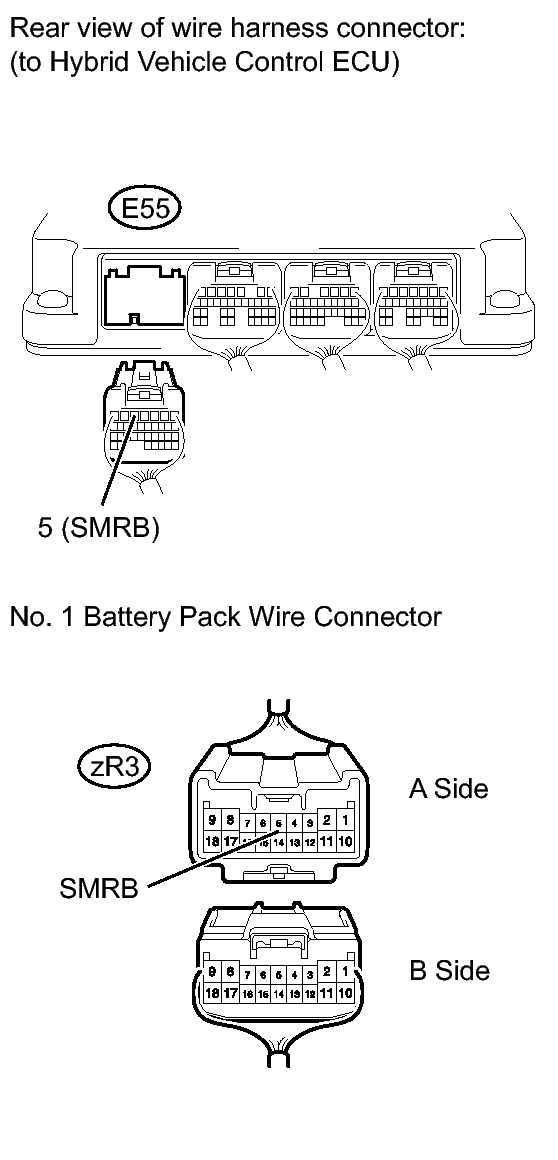

   Fig 2: Identifying E55 And ZR3 Terminal Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard voltage

   Tester Connection	Switch Condition	Specified Condition
   E55-5 (SMRB) - Body ground	Power switch on (IG)	Below 1 V

   NOTE:

   Turning the power switch on (IG) with the hybrid vehicle control ECU and No. 1 battery pack wire connectors disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

6. Turn the power switch off.
7. Measure the resistance according to the value(s) in the table below.

   Standard resistance (Check for open)

   Tester Connection	Switch Condition	Specified Condition
   E55-5 (SMRB) - zR3-5 (SMRB)	Power switch off	Below 1 Ω

   Standard resistance (Check for short)

   Tester Connection	Switch Condition	Specified Condition
   E55-5 (SMRB) or zR3-5 (SMRB) - Body ground and other terminals	Power switch off	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Turn the power switch off.
2. Remove the service plug grip. Refer to PRECAUTION .
   NOTE:

   After removing the service plug grip, do not turn the power switch on (READY) unless instructed by the repair information because this may cause a malfunction.

3. Measure the resistance according to the value(s) in the table below.
   Fig 3: Identifying ZR3 No. 1 Battery Pack Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   zR3-5 (SMRB) - zR3-1 (IG0)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - zR3-2 (SI0)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - zR3-3 (IGCT)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - zR3-4 (SMRG)	Power switch off	37.6 to 64.2 Ω
   zR3-5 (SMRB) - zR3-6 (GND)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - zR3-7 (ILK)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - zR3-8 (GND)	Power switch off	18.8 to 32.1 Ω
   zR3-5 (SMRB) - zR3-9 (IG1)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - zR3-10 (GND0)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - zR3-11 (SHLD)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - zR3-12 (BTH-)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - zR3-13 (BTH+)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - zR3-15 (IDH)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - zR3-16 (GND)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - zR3-17 (SI1)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - zR3-18 (GND1)	Power switch off	10 kΩ or higher
   zR3-5 (SMRB) - Body ground	Power switch off	10 kΩ or higher

NG → See step   4

OK: Go to next step

1. Turn the power switch off.
   Fig 4: Identifying ZR3 No. 1 Battery Pack Wire Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   zR3-8 (GND) - Body ground	Power switch off	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   6

1. Check that the service plug grip is not installed.
2. Disconnect the HV battery junction block connector.
3. Remove the HV battery junction block from the vehicle. Refer to COMPONENTS .
4. Measure the resistance according to the value(s) in the table below.
   Fig 5: HV Battery Junction Block G2, Z30 And Z38 Terminal Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard resistance

   Tester Connection	Condition	Specified Condition
   g2-1 - z30-1	Auxiliary battery voltage is not applied between terminals z38-3 (SMRB) and z38-2 (GND)	10 kΩ or higher
   g2-1 - z30-1	Auxiliary battery voltage is applied between terminals z38-3 (SMRB) and z38-2 (GND)	Below 1 Ω

5. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   z38-3 (SMRB) - z38-2 (GND)	-31 to 176°F (-35 to 80°C)	18.8 to 32.1 Ω

NG → See step   5

OK → REPAIR OR REPLACE HARNESS OR CONNECTOR
