Instrument Panel Safety Pad: Removal

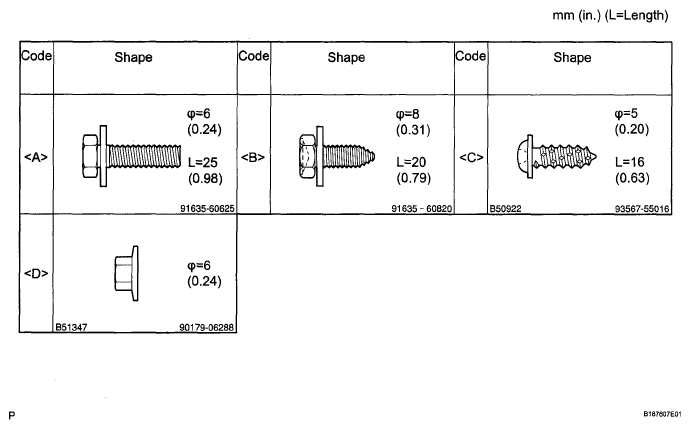

  1. BOLT, SCREW AND NUT TABLE

    HINT:

    The bolts, screws and nuts, necessary for installation and removal of the instrument panel, are shown in the illustration below with alphabet code.

    Fig 1: Bolt, Screw And Nut Specification Chart
    G05864176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait for 90 seconds after disconnecting the cable to prevent the airbag working (See AIRBAG SYSTEM ).
  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.
      Fig 2: Turning Shift Lever Knob
      G05274380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CONSOLE PANEL UPPER FRONT
    1. Disengage the 4 clips and remove the console panel upper front.
      Fig 3: Identifying Clips On Console Panel Upper Front
      G05274381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER
    1. Disengage the 2 clips.
    2. Disconnect the connectors and remove the instrument panel finish panel lower.
    3. Fig 4: Identifying Clips On Instrument Panel Finish Panel Lower
      G05274382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE RADIO RECEIVER  (See REMOVAL )
  7. REMOVE CENTER CLUSTER INTEGRATION SWITCH (w/o Navigation System)  (See REMOVAL )
  8. REMOVE MULTI-DISPLAY (w/ Navigation System)  (See REMOVAL )
  9. REMOVE STEERING WHEEL NO.2 COVER LOWER  (See REMOVAL )
  10. REMOVE STEERING WHEEL NO.3 COVER LOWER  (See REMOVAL )
  11. REMOVE STEERING PAD  (See REMOVAL )
  12. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  13. REMOVE STEERING COLUMN COVER  (See REMOVAL )
  14. REMOVE TILT AND TELESCOPIC SWITCH (w/ Power Tilt and Power Telescopic)  (See REMOVAL )
  15. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See REMOVAL )
  16. REMOVE FRONT DOOR SCUFF PLATE LH  (See REMOVAL )
  17. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Remove the 2 clips and the cowl side trim sub-assembly LH.
      Fig 5: Identifying Clips On Cowl Side Trim Sub-Assembly LH
      G05274383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER
    1. Using a screwdriver, open the instrument panel finish panel sub-assembly lower cover.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the bolt < A > and the screw < C >.
    3. Disconnect the hood lock control cable assembly.
    4. Disengage the 5 claws and the 4 clips.
    5. Disconnect the connectors and remove the instrument panel finish panel sub-assembly lower.
    6. Fig 6: Removing Instrument Panel Finish Panel Sub-Assembly Lower
      G05274384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See REMOVAL )
  20. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Disengage the 4 clips and remove the instrument cluster finish panel sub-assembly.
      Fig 7: Identifying Clips On Instrument Cluster Finish Panel Sub-Assembly
      G05274429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE COMBINATION METER ASSEMBLY
    1. Remove the 4 screws < C >.
    2. Pull out the combination meter assembly, then disconnect the connectors.
  22. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures for the RH side and the LH side.

  23. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures for the RH side and the LH side.

    Fig 8: Identifying Combination Meter Assembly Screws
    G05274386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE INSTRUMENT PANEL NO.2 UNDER COVER SUB-ASSEMBLY
    1. Using a screwdriver, push the 3 claws in the direction indicated by the arrow to disengage and remove the guide on the front of the vehicle.

      HINT:

      Tape the screwdriver tip before use.

    2. Disconnect the connectors and remove the instrument panel No.2 under cover sub-assembly.
      Fig 9: Pushing Claws To Disengage
      G05274387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Remove the 2 bolts < A > and the 2 screws < C >.
    2. Pull the glove compartment door assembly to the rear to remove it.
    3. Disconnect the connector.
      Fig 10: Identifying Glove Compartment Door Screws
      G05274388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE FLOOR CARPET COVER CENTER LH
    1. Remove the 2 clips from the floor carpet cover center LH.
    2. Depress the edge of the floor carpet cover center LH around the claws to disengage the 2 claws below the floor carpet cover center LH.
    3. Slide the floor carpet cover center LH to the front of the vehicle, and disengage the 2 claws from the instrument panel finish panel lower center at the floor carpet cover center LH.
    4. Remove the floor carpet cover center LH.
  27. REMOVE FLOOR CARPET COVER CENTER RH

    HINT:

    Use the same procedures for RH side and the LH side.

    Fig 11: Removing Floor Carpet Cover Center RH
    G05274389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
    1. Remove the 7 screws < C >.
    2. Disengage the 2 clips and remove the instrument panel finish panel lower center.
    3. Fig 12: Identifying Instrument Panel Finish Panel Lower Center Screws
      G05274390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE FRONT PILLAR GARNISH LH  (See REMOVAL )
  30. REMOVE FRONT PILLAR GARNISH RH

    HINT:

    Use the same procedures for the RH side and the LH side.

  31. REMOVE INSTRUMENT PANEL FINISH PLATE
  32. REMOVE INSTRUMENT PANEL NO.1 REGISTER ASSEMBLY
    1. Remove the screw < C > and nut < D >.
    2. Using a screwdriver, lever up the 2 claws on the body from inside of the register.

      HINT:

      Tape the screwdriver tip before use.

    3. Disengage the 2 clips and remove the instrument panel No.1 register assembly.
      Fig 13: Disengaging Clips
      G05274391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE INSTRUMENT PANEL NO.1 REGISTER ASSEMBLY LOWER
    1. Using a screwdriver, lever up the 2 claws on the body from inside of the register.

      HINT:

      Tape the screwdriver tip before use.

    2. Fig 14: Removing Instrument Panel No.1 Register Assembly Lower
      G05274392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 3 clips and remove the instrument panel No.1 register assembly lower.
  34. REMOVE INSTRUMENT PANEL ASSEMBLY
    1. Remove the 2 bolts < A >, bolt < B > and 2 nuts < D > as shown in the illustration.
    2. Disconnect each of the clamps and the connectors.
    3. Pull the instrument panel assembly to the rear and check that none of the wire harness is stuck in the body.

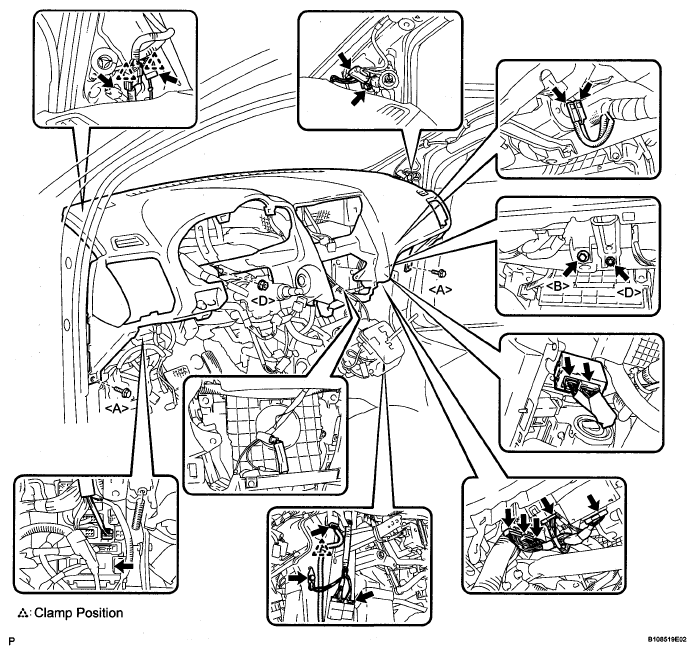

      Fig 15: Identifying Instrument Panel Connector And Clips
      G05281250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
