Parking Brake Cable: Removal

  1. REMOVE REAR WHEEL
  2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY  (See DISASSEMBLY )
  3. REMOVE REAR DISC  (See DISASSEMBLY )
  4. REMOVE PARKING BRAKE SHOE STRUT  (See DISASSEMBLY )
  5. REMOVE PARKING BRAKE NO. 1 SHOE ASSEMBLY  (See DISASSEMBLY )
  6. REMOVE PARKING BRAKE SHOE ADJUSTING SCREW SET  (See DISASSEMBLY )
  7. REMOVE PARKING BRAKE NO. 2 SHOE ASSEMBLY  (See DISASSEMBLY )
  8. SEPARATE PARKING BRAKE NO. 3 CABLE ASSEMBLY
    1. Remove the 2 bolts and separate the parking brake No. 3 cable assembly from the backing plate.
  9. REMOVE FUEL TANK NO. 1 PROTECTOR  (See REMOVAL )
  10. REMOVE PARKING BRAKE NO. 3 CABLE ASSEMBLY
    1. Remove the 2 bolts and separate the parking brake No. 2 and No. 3 cable assemblies from the parking brake equalizer.
      Fig 1: Locating Parking Brake No. 2 And No. 3 Cable Bolts
      G05202985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, 4 nuts, and parking brake No. 3 cable assembly.

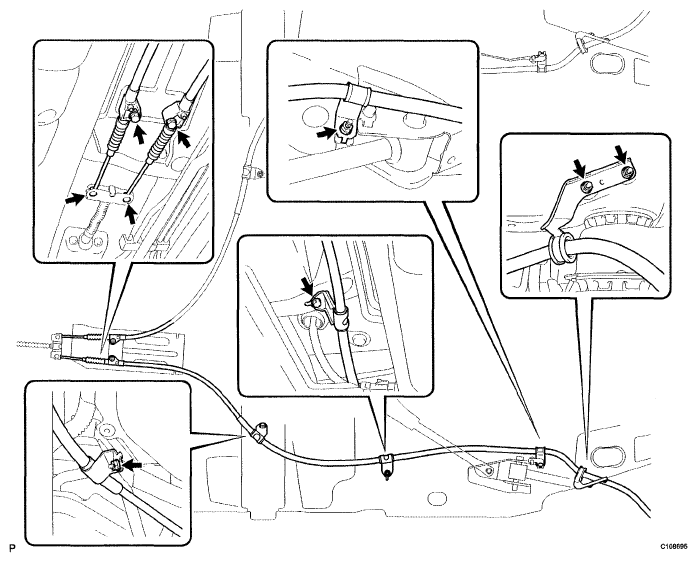

      Fig 2: Locating Parking Brake No. 3 Cable Assembly Nuts And Bolts
      G05202986Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the parking brake cable support No. 1 bracket.
