Instrument Panel Safety Pad: Installation

  1. INSTALL INSTRUMENT PANEL ASSEMBLY
    1. Connect each of the clamps and connectors.
    2. Install the 2 bolts < A >, bolt < B > and 2 nuts < D > as shown below, then install the instrument panel assembly.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf) (Bolt < B >)

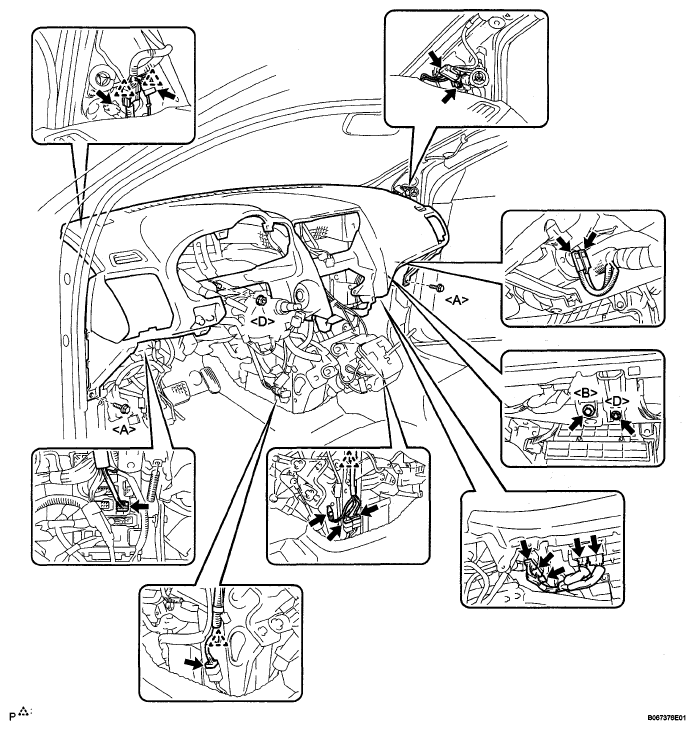

      Fig 1: Identifying Instrument Panel Assembly Bolts & Nuts
      G05274393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY LOWER
    1. Engage the 3 clips and 2 claws, and install the instrument panel No. 1 register assembly lower.
      Fig 2: Identifying Instrument Panel No. 1 Register Assembly Lower Clips & Claws
      G05274422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INSTRUMENT PANEL NO. 1 REGISTER ASSEMBLY
    1. Engage the 2 clips and 2 claws.
    2. Install the screw < C >, nut < D >, and the instrument panel No. 1 register assembly.
      Fig 3: Identifying Instrument Panel Finish Plate Clips, Claws, Nut & Screw
      G05274423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INSTRUMENT PANEL FINISH PLATE
  5. INSTALL FRONT PILLAR GARNISH LH INSTALL FRONT PILLAR GARNISH RH
  6. INSTRUMENT PANEL - INSTRUMENT PANEL SAFETY PAD
  7. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER
    1. Engage the 2 clips.
    2. Install the 7 screws < C > and the instrument panel finish panel lower center.

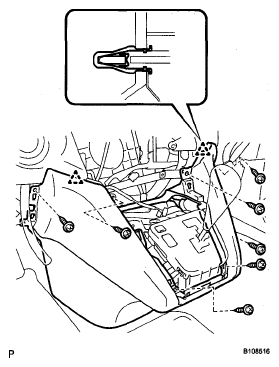

      Fig 4: Identifying Instrument Panel Finish Panel Lower Center Clips & Screws
      G05274390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FLOOR CARPET COVER CENTER LH
    1. Slide the floor carpet cover center LH to the rear of the vehicle, and engage the 2 claws to the instrument panel finish panel lower center at the floor carpet cover center LH.
    2. Install the 2 clips and the floor carpet cover center LH.
      Fig 5: Identifying Floor Carpet Cover Center LH Claws & Clips
      G05274425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL FLOOR CARPET COVER CENTER RH

    HINT:

    Use the same procedures for the RH side and the LH side.

  10. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Connect the connector.
    2. Install the 2 bolts < A >, the 2 screws < C >, and the glove compartment door assembly.
      Fig 6: Identifying Glove Compartment Door Assembly Bolts & Screws
      G05274388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL INSTRUMENT PANEL NO. 2 UNDER COVER SUB-ASSEMBLY
    1. Connect the connectors.
    2. Engage the 3 claws and install the instrument panel No. 2 under cover sub-assembly.
      Fig 7: Identifying Instrument Panel No. 2 Under Cover Sub-Assembly Claws
      G05274427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH

    HINT:

    Use the same procedures for the RH side and the LH side.

  13. INSTALL FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedures for the RH side and the LH side.

  14. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connectors.
    2. Install the 4 screws < C > and the combination meter assembly.
      Fig 8: Identifying Combination Meter Assembly Screws
      G05274386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Engage the 4 clips and install the instrument cluster finish panel sub-assembly.
      Fig 9: Identifying Instrument Cluster Finish Panel Sub-Assembly Clips
      G05274429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  17. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER
    1. Connect the connectors.
    2. Engage the 5 claws and the 4 clips.
    3. Connect the hood lock control cable assembly.
    4. Install the bolt < A >, the screw < C >, and the instrument panel finish panel sub-assembly lower.

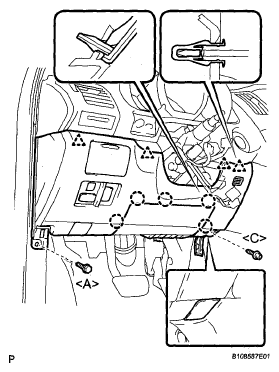

      Fig 10: Identifying Instrument Panel Finish Panel Sub-Assembly Lower Claws, Clips, Bolt & Screw
      G05274430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL COWL SIDE TRIM SUB-ASSEMBLY LH
    1. Install the 2 clips and the cowl side trim sub-assembly LH.
      Fig 11: Identifying Cowl Side Trim Sub-Assembly LH Clips
      G05274383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL FRONT DOOR SCUFF PLATE LH
  20. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
  21. INSTALL TILT AND TELESCOPIC SWITCH (for Power Tilt and Power Telescopic)
  22. INSTALL STEERING COLUMN COVER  (See INSTALLATION )
  23. CENTER SPIRAL CABLE  (See INSTALLATION )
  24. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  25. INSTALL STEERING PAD  (See INSTALLATION )
  26. INSTALL STEERING WHEEL NO. 3 COVER LOWER  (See INSTALLATION )
  27. INSTALL STEERING WHEEL NO. 2 COVER LOWER  (See INSTALLATION )
  28. INSTALL MULTI-DISPLAY (w/ Navigation System)  (See INSTALLATION )
  29. INSTALL CENTER CLUSTER INTEGRATION SWITCH (w/o Navigation System)  (See INSTALLATION )
  30. INSTALL RADIO RECEIVER  (See INSTALLATION )
  31. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER
    1. Connect the connectors.
    2. Engage the 2 clips and install the instrument panel finish panel lower.
      Fig 12: Identifying Instrument Panel Finish Panel Lower Clips
      G05274382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. INSTALL CONSOLE PANEL UPPER FRONT
    1. Engage the 4 clips and install the console panel upper front.
      Fig 13: Identifying Console Panel Upper Front Clips
      G05274381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
  34. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  35. PERFORM INITIALIZATION
    NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal.
  36. INSPECT STEERING PAD  (See ON-VEHICLE INSPECTION )
  37. INSPECT SRS WARNING LIGHT

    HINT:

    (See DIAGNOSIS SYSTEM )
