Removal

AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: OIL COOLER: REMOVAL

1. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Removal

2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Removal

3. REMOVE NO. 2 ENGINE UNDER COVER Removal

4. REMOVE NO. 1 ENGINE UNDER COVER Removal

5. REMOVE FRONT BUMPER ASSEMBLY (w/ Air Cooled Transmission Oil Cooler)
(a) Remove the front bumper Removal.
6. REMOVE FRONT FENDER APRON SEAL FRONT RH Removal

7. REMOVE FRONT FENDER APRON SEAL REAR RH Removal

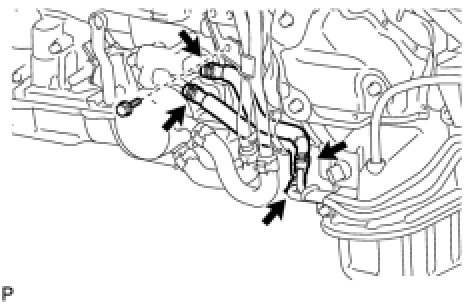

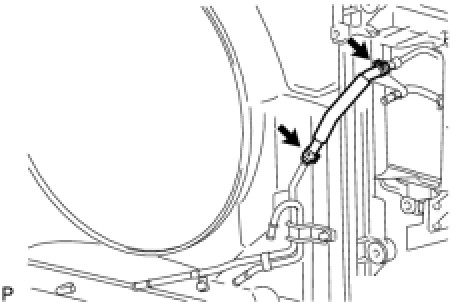

8. DISCONNECT TRANSMISSION OIL COOLER HOSE
(a) Remove the bolt and move the water by-pass pipe so that the 2 transmission oil cooler hoses can be disconnected.
(b) Disconnect the 2 transmission oil cooler hoses.

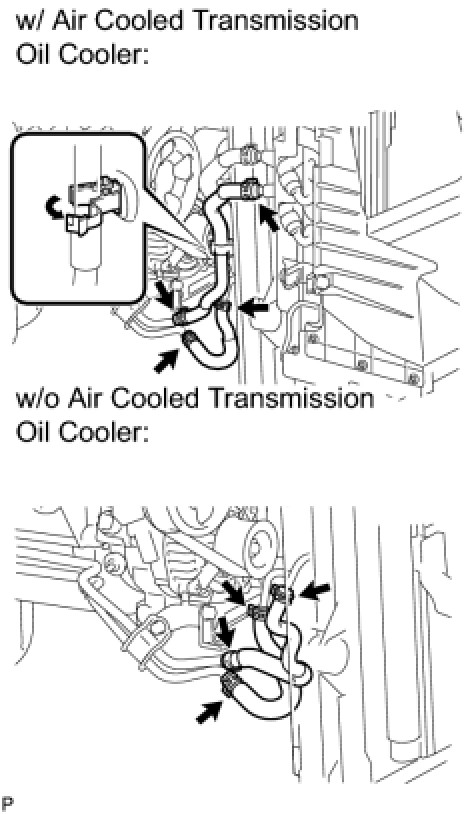

9. DISCONNECT INLET NO. 1 OIL COOLER HOSE AND OUTLET NO. 1 OIL COOLER HOSE
(a) w/ Air Cooled Transmission Oil Cooler:
(1) Detach the claw to open the flexible hose clamp.
(2) Disconnect the inlet and outlet oil cooler hoses.
(b) w/o Air Cooled Transmission Oil Cooler:
(1) Disconnect the inlet and outlet oil cooler hoses.

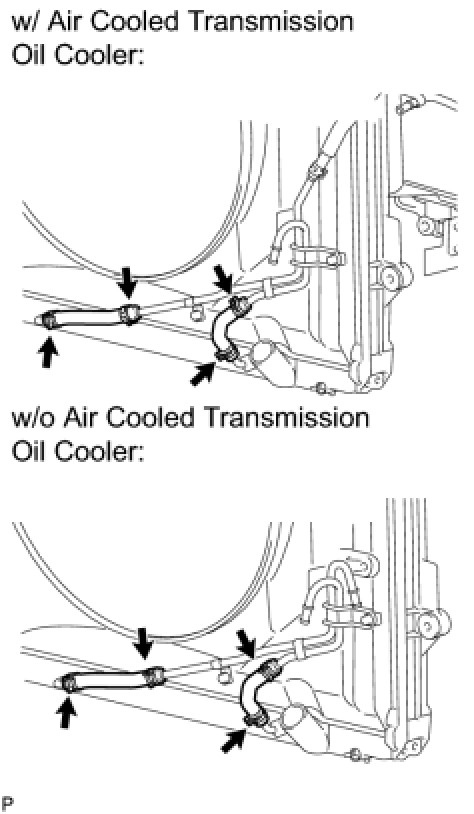

10. DISCONNECT INLET NO. 2 OIL COOLER HOSE AND INLET NO. 3 OIL COOLER HOSE
(a) Disconnect the 2 inlet oil cooler hoses.

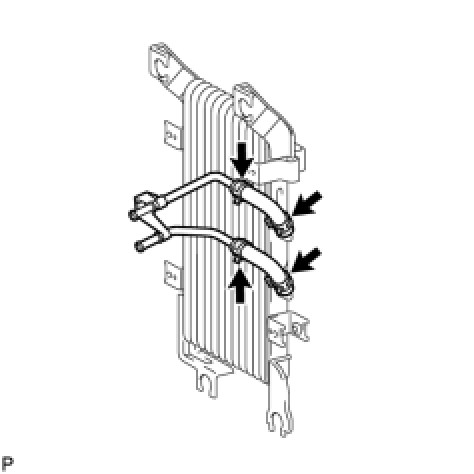

11. DISCONNECT INLET NO. 4 OIL COOLER HOSE (w/ Air Cooled Transmission Oil Cooler)

12. REMOVE OIL COOLER TUBE

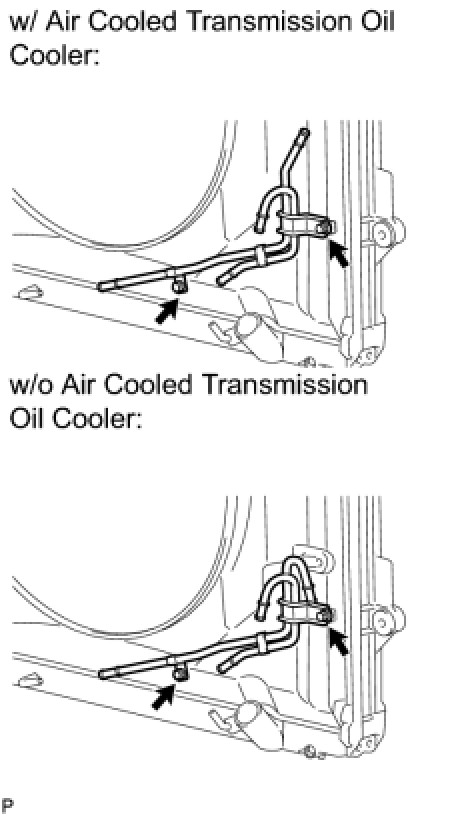

(a) Remove the 2 bolts and oil cooler tube.

13. REMOVE TRANSMISSION OIL COOLER AIR DUCT (w/ Air Cooled Transmission Oil Cooler)

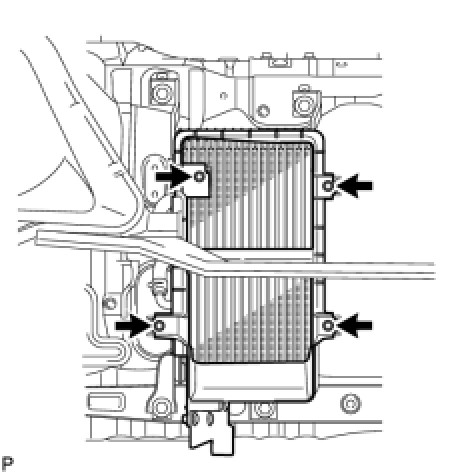

(a) Remove the 4 bolts and transmission oil cooler air duct.
14. REMOVE OIL COOLER ASSEMBLY (w/ Air Cooled Transmission Oil Cooler)

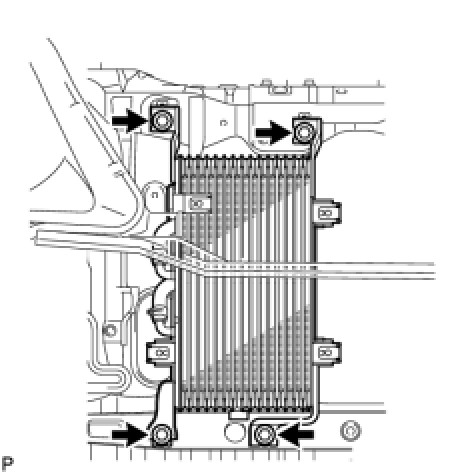

(a) Remove the 4 bolts and oil cooler.

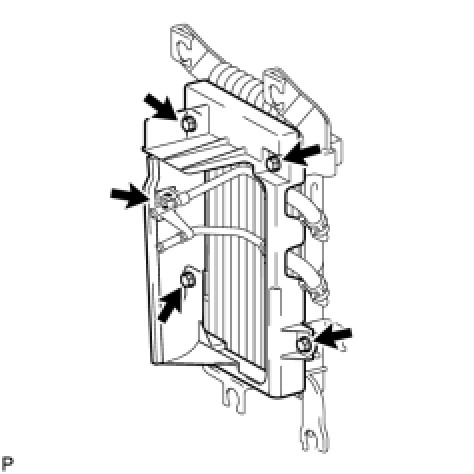

(b) Remove the 5 bolts and rear transmission oil cooler air duct.
