Removal

SUSPENSION CONTROL: HEIGHT CONTROL SENSOR (for Front Side): REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE FRONT WHEEL
3. REMOVE FRONT FENDER APRON SEAL FRONT LH Removal

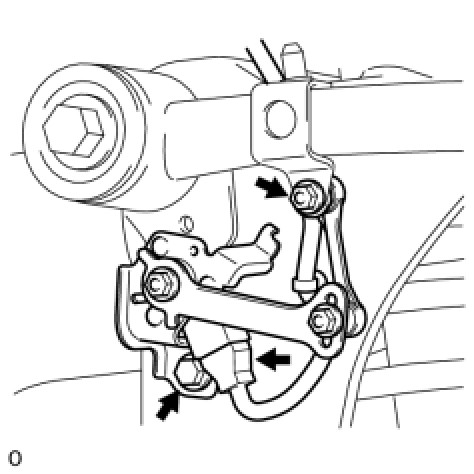

4. REMOVE FRONT HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH






(a) Disconnect the connector.
(b) Remove the nut, bolt and sensor.
