Removal

FRONT SUSPENSION: FRONT STABILIZER BAR: REMOVAL

1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Removal

3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Removal

4. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY Removal

5. LOOSEN FRONT NO. 1 STABILIZER BRACKET LH

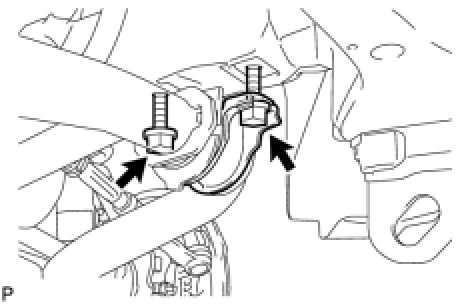

(a) Loosen the 2 bolts of the front stabilizer brackets.
6. LOOSEN FRONT NO. 1 STABILIZER BRACKET RH

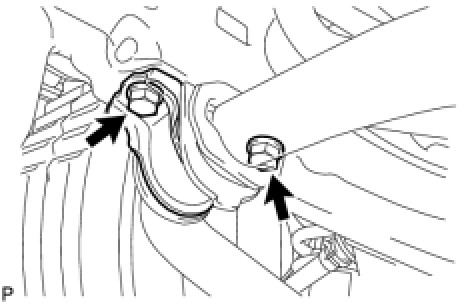

(a) Loosen the 2 bolts of the front stabilizer brackets.
7. REMOVE FRONT STABILIZER LINK ASSEMBLY LH






(a) Remove the bolt, nut and stabilizer link.
HINT:
If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud.

8. REMOVE FRONT STABILIZER LINK ASSEMBLY RH






(a) Remove the bolt, nut and stabilizer link.
HINT:
If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud.

9. REMOVE FRONT NO. 1 STABILIZER BRACKET LH

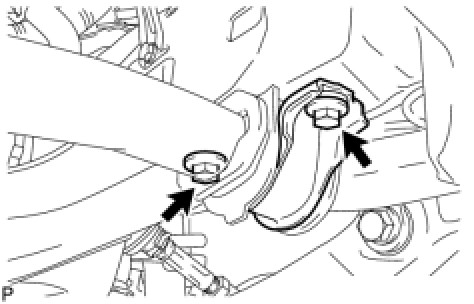

(a) Remove the 2 bolts and stabilizer bracket from the front frame assembly.
10. REMOVE FRONT NO. 1 STABILIZER BRACKET RH






(a) Remove the 2 bolts and stabilizer bracket from the front frame assembly.
11. REMOVE FRONT STABILIZER BAR
(a) Remove the front stabilizer bar from the frame assembly.
12. REMOVE FRONT NO. 1 STABILIZER BAR BUSH
(a) Remove the front stabilizer bar bush from the front stabilizer bar.
