Removal

SUPPLEMENTAL RESTRAINT SYSTEMS: REAR FLOOR AIRBAG SENSOR: REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE REAR STEP COVER Removal

4. REMOVE REAR DOOR SCUFF PLATE LH Removal

5. REMOVE REAR DOOR SCUFF PLATE RH Removal

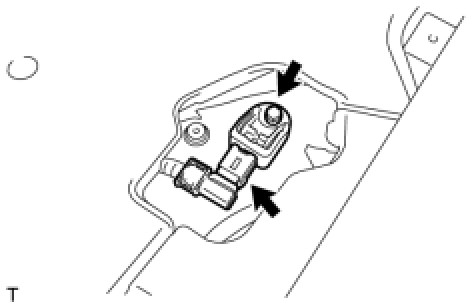

6. REMOVE REAR FLOOR AIRBAG SENSOR
(a) Fold back the floor carpet.

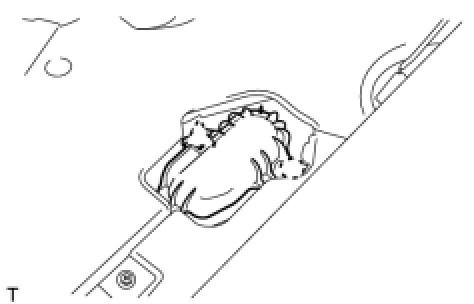

(b) Detach the clip and claw, and remove the cover.
