3UR-FE FUEL: FUEL PRESSURE REGULATOR: REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. REMOVE ENGINE ROOM SIDE COVER RH Removal

3. REMOVE UPPER RADIATOR SUPPORT SEAL Removal

4. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

5. DISCHARGE FUEL SYSTEM PRESSURE Removal

6. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL Removal

7. REMOVE AIR CLEANER HOSE ASSEMBLY Removal

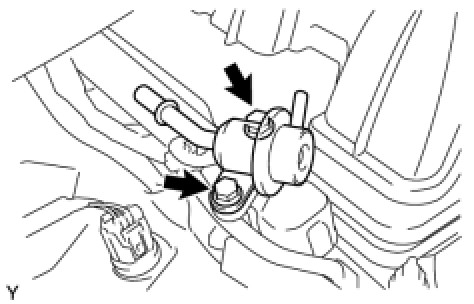

8. REMOVE FUEL PRESSURE REGULATOR ASSEMBLY

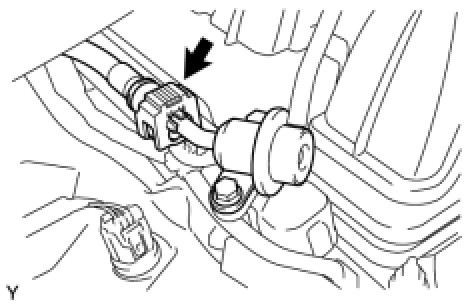

(a) Disconnect the No. 2 fuel tube from the pressure regulator Service Precautions.
CAUTION:
Put a cloth or equivalent under the pressure regulator.

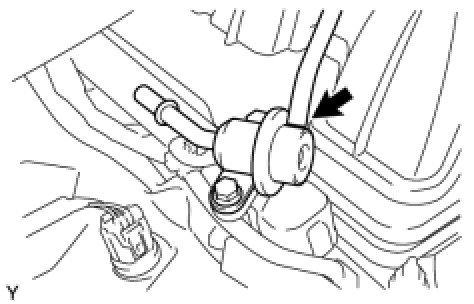

(b) Disconnect the vacuum sensing hose from the pressure regulator.
