Removal

LIGHTING (EXT): DAYTIME RUNNING LIGHT RESISTOR: REMOVAL


1. REMOVE ENGINE ROOM SIDE COVER RH Removal

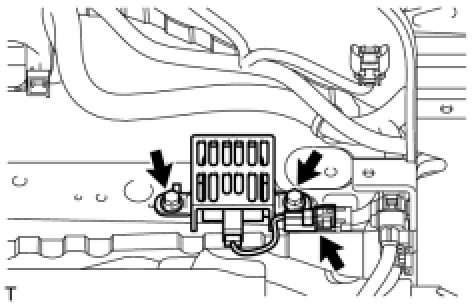

2. REMOVE DAYTIME RUNNING LIGHT RESISTOR






(a) Disconnect the connector.
(b) Remove the 2 bolts and light resistor.
