Removal

PARKING BRAKE: PARKING BRAKE LEVER: REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH (w/ Cool Box) Removal

2. REMOVE ENGINE ROOM SIDE COVER RH (w/ Cool Box) Removal

3. REMOVE UPPER RADIATOR SUPPORT SEAL (w/ Cool Box) Removal

4. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM (w/ Cool Box) Service and Repair

5. REMOVE FRONT SEAT ASSEMBLY LH (w/ Cool Box)
(a) Remove the front seat assembly LH Removal.
6. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY (w/o Cool Box)
(a) Remove the rear console box sub-assembly Removal.
7. REMOVE COOLING BOX ASSEMBLY (w/ Cool Box)
(a) Remove the cooling box assembly Removal.
8. REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY
(a) Release the parking brake lever.
(b) Disconnect the parking brake switch connector.






(c) Remove the adjusting nut.






(d) Remove the parking brake return spring.

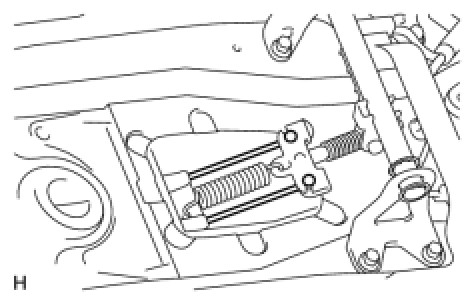

(e) Disconnect the No. 2 parking brake cable and No. 3 parking brake cable from the No. 1 parking brake pull rod.
(f) Remove the No. 1 parking brake pull rod, bush and compression spring from the parking brake lever.
(g) Remove the straight pin from the parking brake lever.

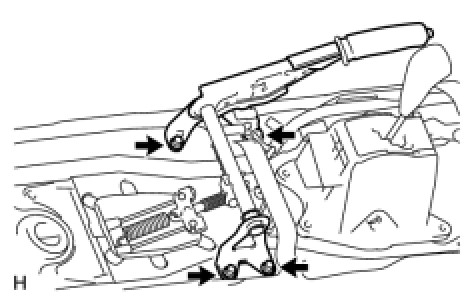

(h) Remove the 4 bolts and parking brake lever.
9. REMOVE PARKING BRAKE SWITCH ASSEMBLY
(a) Remove the screw and parking brake switch.
