THEFT DETERRENT / KEYLESS ENTRY: ELECTRICAL KEY OSCILLATOR (for Rear Floor): REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE REAR NO. 1 SEAT ASSEMBLY LH
(a) Remove the rear No. 1 seat assembly LH Removal.
4. REMOVE REAR NO. 1 SEAT ASSEMBLY RH
(a) Remove the rear No. 1 seat assembly RH Removal.
5. REMOVE REAR NO. 2 SEAT ASSEMBLY
(a) Remove the rear No. 2 seat assembly Removal.
6. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY LH
(a) Remove the front quarter trim panel assembly LH Removal.
7. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH
(a) Remove the front quarter trim panel assembly RH Removal.
8. REMOVE REAR NO. 1 SEAT PROTECTOR Removal

9. REMOVE REAR NO. 2 SEAT PROTECTOR Removal

10. REMOVE INDOOR ELECTRICAL KEY OSCILLATOR
(a) Fold back the front floor carpet assembly.






(b) Disconnect the connector.

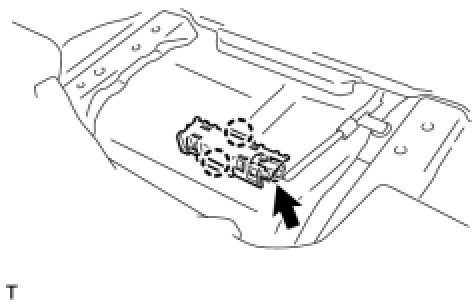

(c) Detach the 2 claws and remove the electrical key oscillator.
