Removal

THEFT DETERRENT / KEYLESS ENTRY: ELECTRICAL KEY OSCILLATOR (for Outside Luggage Compartment): REMOVAL

1. REMOVE REAR QUARTER PANEL MUDGUARD LH Removal

2. REMOVE REAR QUARTER PANEL MUDGUARD RH Removal

3. REMOVE REAR NO. 1 BUMPER PLATE Removal

4. REMOVE REAR BUMPER COVER Removal

5. REMOVE REAR BUMPER ARM BRACKET LH Removal

6. REMOVE ELECTRICAL KEY ANTENNA

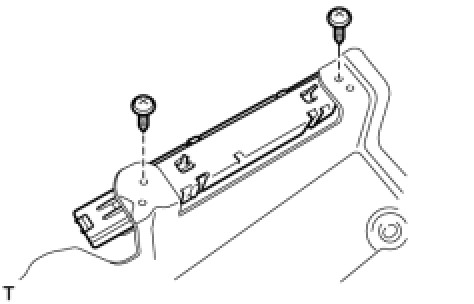

(a) Remove the 2 screws and antenna.
