Removal

DOOR / HATCH: HOOD LOCK CONTROL CABLE ASSEMBLY: REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. REMOVE ENGINE ROOM SIDE COVER RH Removal

3. REMOVE UPPER RADIATOR SUPPORT SEAL Removal

4. REMOVE FRONT FENDER MAIN SEAL LH






(a) Using a screwdriver, detach the 3 clips and remove the fender main seal.
HINT:
Tape the screwdriver tip before use.

5. REMOVE RADIATOR GRILLE ASSEMBLY Removal

6. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System) Removal

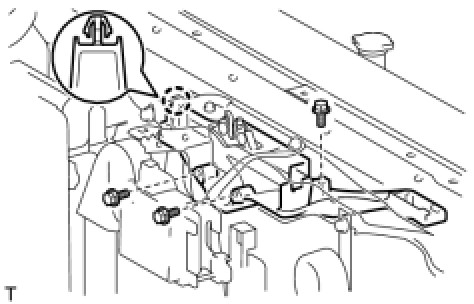

7. REMOVE HOOD LOCK CONTROL CABLE COVER






(a) Remove the 3 screws.
(b) Detach the claw and remove the cable cover.

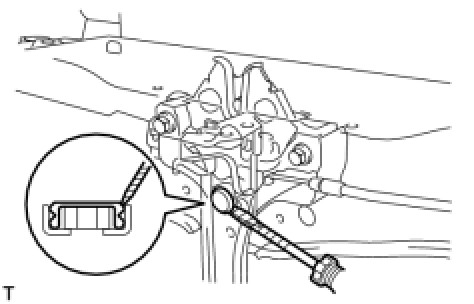

8. REMOVE HOOD LOCK NUT CAP






(a) Using a screwdriver, remove the hood lock nut cap as shown in the illustration.
HINT:
Tape the screwdriver tip before use.

9. REMOVE HOOD LOCK ASSEMBLY






(a) Remove the 2 bolts and nut.
(b) Remove the hood lock.
(c) Disconnect the connector.






(d) Disconnect the hood lock control cable.
10. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY






(a) Detach the 2 claws.
(b) Disconnect the hood lock control cable and remove the hood lock lever.
11. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY





(a) Using a screwdriver, disconnect the clamps shown in the illustration.
HINT:
Tape the screwdriver tip before use.

(b) Pull the cable from the engine room and remove it.
