Removal









CRUISE CONTROL: MILLIMETER WAVE RADAR SENSOR: REMOVAL


1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. REMOVE ENGINE ROOM SIDE COVER RH Removal

3. REMOVE UPPER RADIATOR SUPPORT SEAL Removal

4. REMOVE RADIATOR GRILLE ASSEMBLY Removal

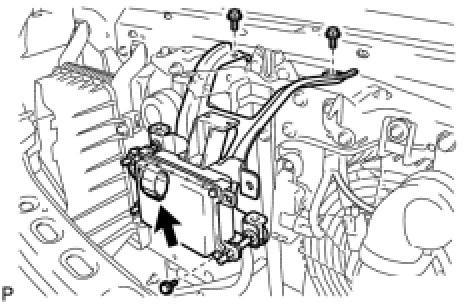

5. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY






(a) Disconnect the sensor connector.
(b) Remove the 3 bolts and sensor.
