Removal

AUDIO / VIDEO: REAR DOOR SPEAKER: REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH Disassembly

4. REMOVE REAR UPPER DOOR ARMREST BASE PANEL LH Disassembly

5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY Disassembly

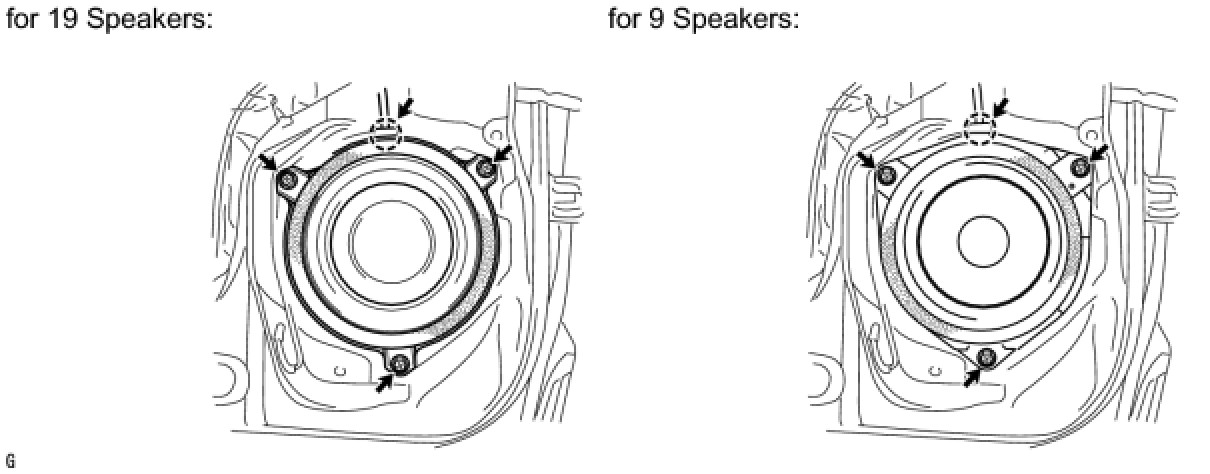

6. REMOVE REAR SPEAKER SET
(a) Disconnect the speaker connector.
(b) Remove the 3 screws.
(c) Detach the claw and remove the speaker.
NOTICE:
Do not touch the cone part of the speaker.

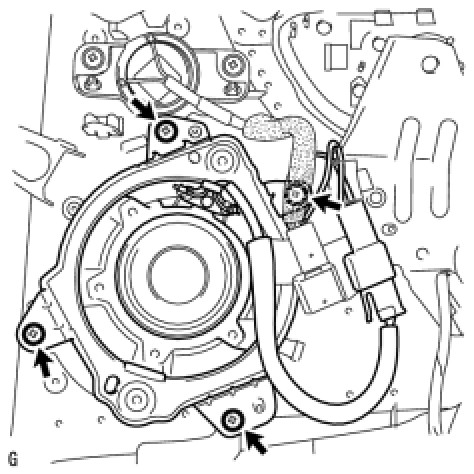

7. REMOVE REAR NO. 2 SPEAKER ASSEMBLY (for 19 Speakers)






(a) Disconnect the connector.
(b) Remove the 4 screws and speaker.
NOTICE:
Do not touch the cone part of the speaker.

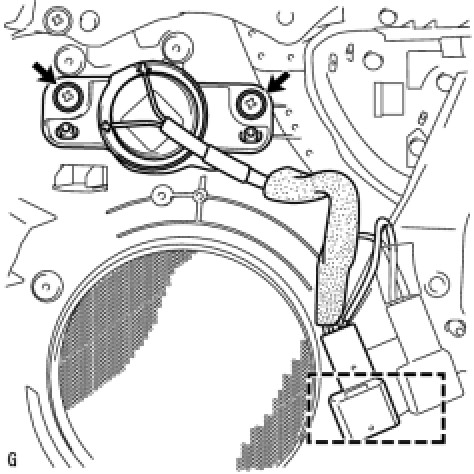

8. REMOVE REAR NO. 3 SPEAKER ASSEMBLY (for 19 Speakers)






(a) Disconnect the connector.
(b) Detach the clamp.
(c) Remove the 2 screws and speaker.
NOTICE:
Do not touch the cone part of the speaker.
