Removal

AUDIO / VIDEO: PILLAR SPEAKER (for Front Side): REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE FRONT ASSIST GRIP SUB-ASSEMBLY Removal

4. REMOVE FRONT PILLAR GARNISH LH Removal

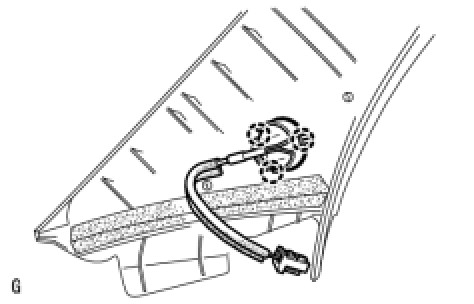

5. REMOVE FRONT NO. 3 SPEAKER ASSEMBLY






(a) Detach the 3 claws and remove the speaker.
