Removal

AUDIO / VIDEO: FRONT DOOR SPEAKER: REMOVAL

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE FRONT LOWER DOOR FRAME BRACKET GARNISH LH Disassembly

4. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH Disassembly

5. REMOVE FRONT UPPER ARMREST BASE PANEL LH Disassembly

6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Disassembly

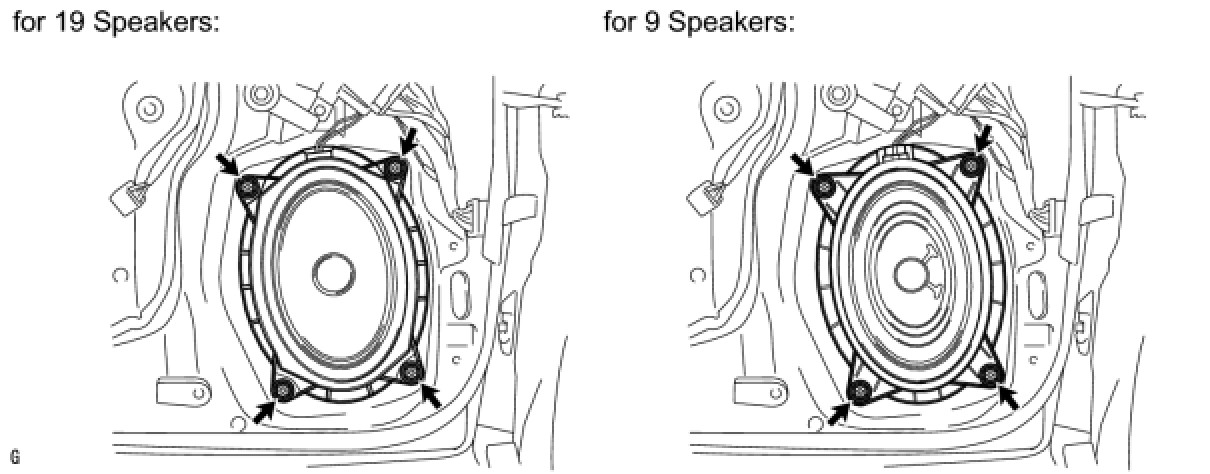

7. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
(a) Disconnect the speaker connector.
(b) Remove the 4 screws and speaker.
NOTICE:
Do not touch the cone part of the speaker.
