Removal

GARAGE DOOR OPENER: GARAGE DOOR OPENER TRANSMITTER: REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE MAP LIGHT ASSEMBLY
(a) Remove the map light Removal.

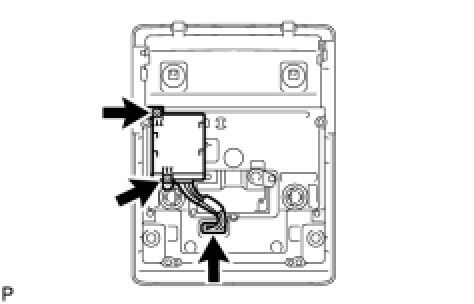

4. REMOVE GARAGE DOOR OPENER TRANSMITTER
(a) Disconnect the connector.
(b) Remove the 2 screws and garage door opener transmitter.
