Removal

AUDIO / VIDEO: TELEVISION DISPLAY: REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE NO. 1 ROOF LINING TRIM COVER






(a) Detach the 4 claws and remove the cover.
4. REMOVE NO. 2 ROOF LINING TRIM COVER






(a) Detach the 4 claws and remove the cover.
5. REMOVE ROOF CONSOLE BOX ASSEMBLY






(a) Remove the 2 bolts.
(b) Detach the 4 clips and 2 claws.
(c) Disconnect the connector and remove the roof console box.
6. REMOVE TELEVISION DISPLAY ASSEMBLY
(a) Disconnect the connectors.

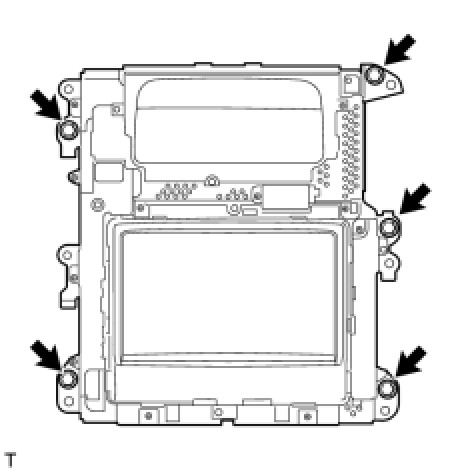

(b) Remove the 5 bolts.

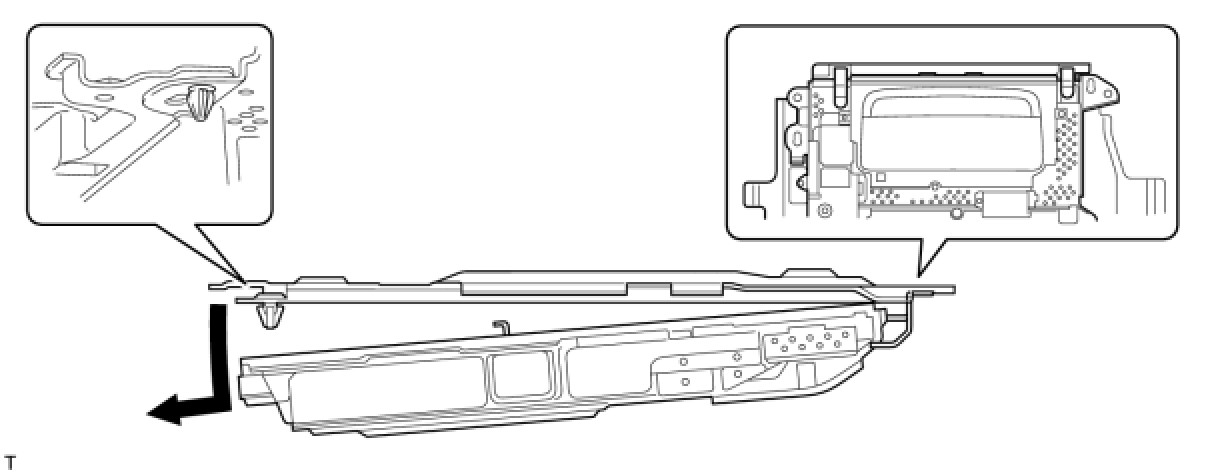

(c) Detach the clips and move the television display as shown in the illustration to detach the claws and remove it.





7. REMOVE SLIDING ROOF HOUSING SUB-ASSEMBLY
(a) Remove the sliding roof housing Removal.
8. REMOVE TELEVISION DISPLAY BRACKET






(a) Remove the 4 nuts and bracket.
