Rear View Monitor System

PARK ASSIST / MONITORING: REAR VIEW MONITOR SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HINT:
Use the following procedures to troubleshoot the rear view monitor system.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, replace or recharge the battery before proceeding.
NEXT -- Continue to next step.
3. CUSTOMER PROBLEM ANALYSIS
NEXT -- Continue to next step.
4. CHECK FOR DTC (5C-40)
(a) Refer to the DTC Check / Clear procedures of the navigation system Reading and Clearing Diagnostic Trouble Codes.

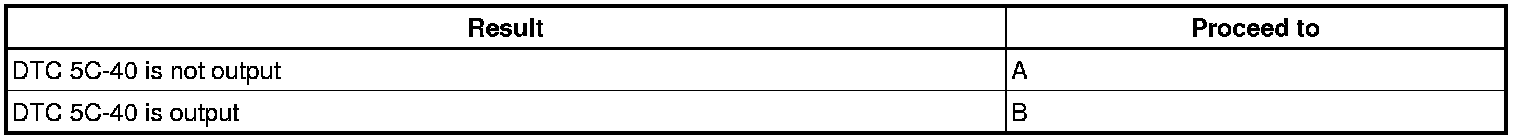

Result





B -- Go to 5C-40
A -- Continue to next step.
5. PROBLEM SYMPTOM CONFIRMATION

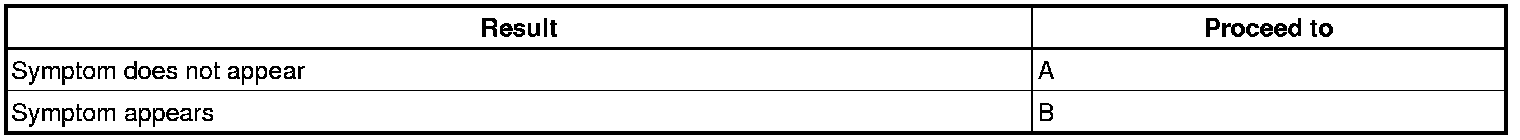

Result





B -- Go to step 6
A -- Continue to next step.
6. SYMPTOM SIMULATION
NEXT -- Continue to next step.
7. CHECK IF SAME SYMPTOM APPEARS IN NAVIGATION SYSTEM
(a) Refer to the navigation system.

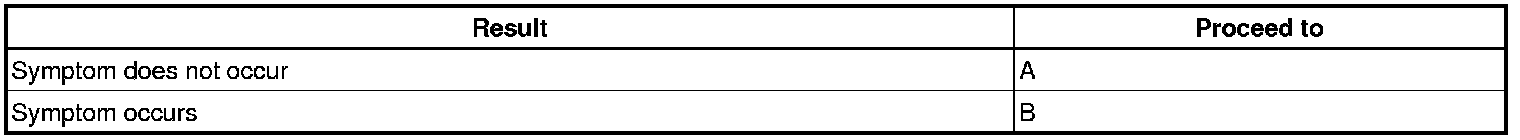

Result





B -- Go to NAVIGATION SYSTEM
A -- Continue to next step.
8. PROBLEM SYMPTOMS TABLE
(a) Refer to the Problem Symptoms Table Rear View Monitor System.

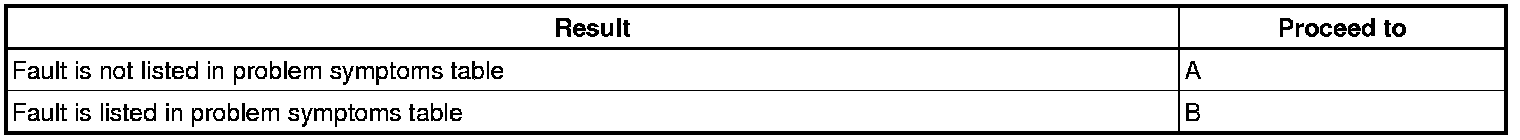

Result





B -- Go to step 9
A -- Continue to next step.
9. BASED ON MALFUNCTION SYMPTOM, PERFORM TROUBLESHOOTING BELOW
(a) Terminals of ECU Rear View Monitor System.
NEXT -- Continue to next step.
10. ADJUST, REPAIR OR REPLACE
NEXT -- Continue to next step.
11. CONFIRMATION TEST
NEXT -- END
