Removal

PARK ASSIST / MONITORING: ULTRASONIC SENSOR (for Front): REMOVAL

1. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Removal

2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Removal

3. REMOVE ENGINE ROOM SIDE COVER LH Removal

4. REMOVE ENGINE ROOM SIDE COVER RH Removal

5. REMOVE UPPER RADIATOR SUPPORT SEAL Removal

6. REMOVE RADIATOR GRILLE ASSEMBLY Removal

7. REMOVE FRONT BUMPER COVER Removal

8. REMOVE NO. 4 ENGINE ROOM WIRE Disassembly

9. REMOVE NO. 1 ULTRASONIC SENSOR
HINT:
Use the same procedure to remove the No. 1 ultrasonic sensor on the other side.

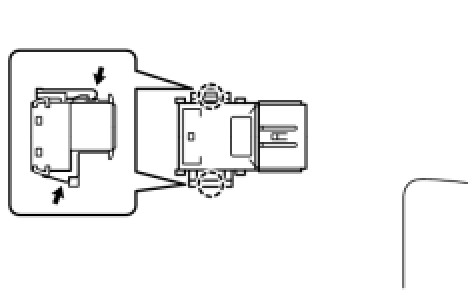

(a) While pushing down on the lever with a finger to release the one claw, detach the claw on the other side to remove the ultrasonic sensor.
HINT:
The type of claw on the top and the type of claw on the bottom of the sensor are different. Observe the claws carefully before removing the sensor.

10. REMOVE NO. 1 ULTRASONIC SENSOR RETAINER
HINT:
Use the same procedure to remove the No. 1 ultrasonic sensor retainer on the other side.

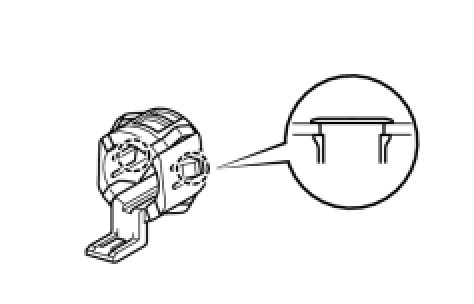

(a) Detach the 2 claws and remove the ultrasonic sensor retainer from the front bumper cover.
