Removal

CELLULAR COMMUNICATION: TELEPHONE ANTENNA: REMOVAL

1. REMOVE ENGINE ROOM SIDE COVER LH Removal

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTICE:
- w/ Navigation System:
After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
- When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

3. REMOVE ROOF HEADLINING ASSEMBLY
(a) Remove the roof headlining Removal.
4. REMOVE NO. 5 REAR ROOF AIR DUCT Removal

5. REMOVE NO. 4 REAR ROOF AIR DUCT Removal

6. REMOVE NO. 3 REAR ROOF AIR DUCT Removal

7. REMOVE TELEPHONE ANTENNA ASSEMBLY

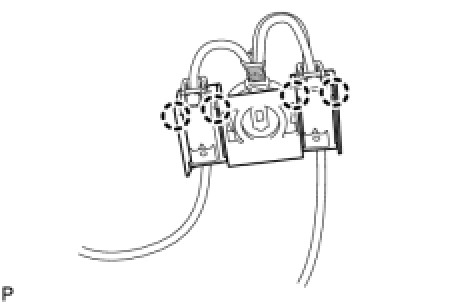

(a) Detach the 4 claws and remove the 2 antenna cord connectors from the protector.

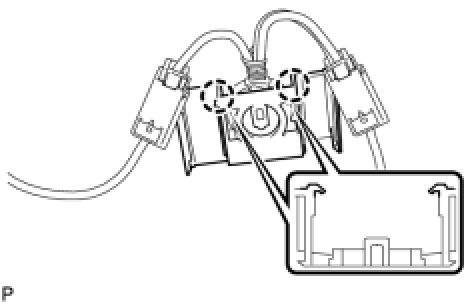

(b) Detach the 2 claws and remove the protector.

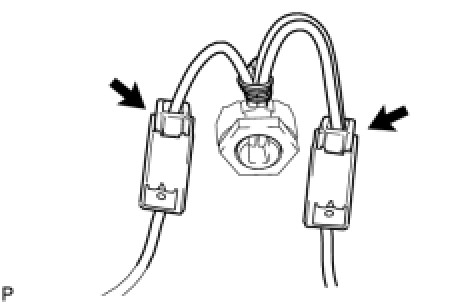

(c) Disconnect the 2 antenna cord connectors.

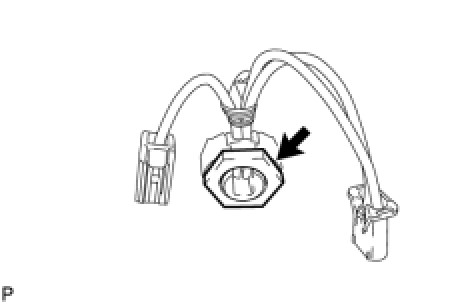

(d) Remove the antenna nut.

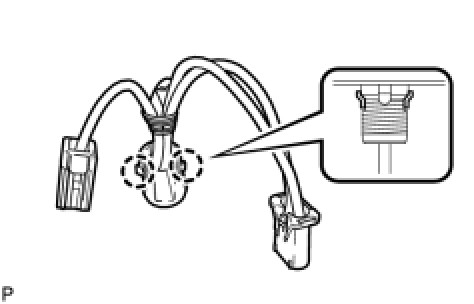

(e) Detach the 2 claws and remove the telephone antenna.
