Audio and Visual System

AUDIO / VIDEO: AUDIO AND VISUAL SYSTEM: 57-47: Bluetooth Module Initialization Failed

DTC 57-47 - Bluetooth Module Initialization Failed

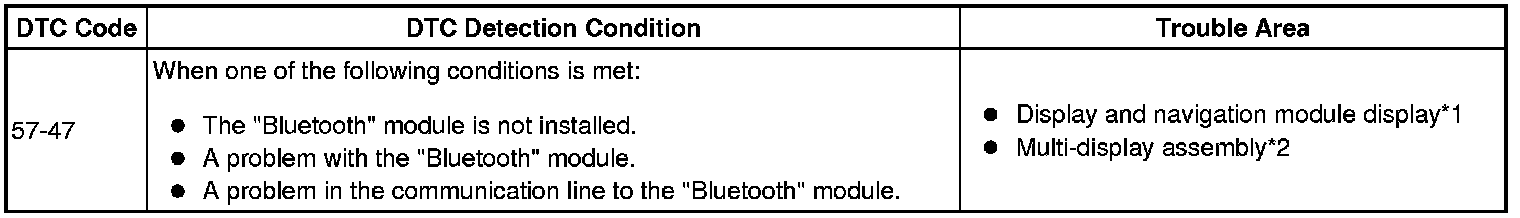

DESCRIPTION





- *1: w/ Navigation System
- *2: w/o Navigation System

INSPECTION PROCEDURE
HINT:
After the inspection is completed, clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

PROCEDURE

1. REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY OR MULTI-DISPLAY ASSEMBLY
(a) w/ Navigation System: Replace the display and navigation module display Removal.
(b) w/o Navigation System: Replace the multi-display Removal.
NEXT -- END
