Hood Lock Control Cable Assembly: Removal

  1. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY  (See REMOVAL )
  2. REMOVE BATTERY SERVICE HOLE COVER LH  (See REMOVAL )
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
    NOTE:
    • After the power switch is turned OFF, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the power switch OFF, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
  4. REMOVE ENGINE ROOM SIDE COVER LH  (See REMOVAL )
  5. REMOVE ENGINE ROOM SIDE COVER RH  (See REMOVAL )
  6. REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY  (See REMOVAL )
  7. REMOVE COOL AIR INTAKE DUCT SEAL  (See REMOVAL )
  8. REMOVE FRONT UPPER FENDER PROTECTOR LH
    Fig 1: Identifying Front Upper Fender Protector LH Clips
    G04945058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, detach the 3 clips and remove the fender protector.

    HINT:

    Tape the screwdriver tip before use

  9. REMOVE RADIATOR GRILLE ASSEMBLY  (See REMOVAL )
  10. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY
  11. REMOVE HOOD LOCK CONTROL CABLE COVER
    1. Remove the 3 screws
    2. Detach the claw and remove the cable cover
    Fig 2: Identifying Hood Lock Control Cable Cover Claws And Screws
    G04946056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE HOOD LOCK ASSEMBLY
    1. Remove the cap
    2. Remove the 2 bolts and nut
    3. Remove the hood lock
    4. Disconnect the hood lock control cable.
    Fig 3: Identifying Hood Lock Assembly Cap, Bolts And Nut
    G04946058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Detach the 2 claws
    2. Disconnect the hood lock control cable and remove the hood lock lever
    Fig 4: Identifying Hood Lock Control Lever Sub-Assembly Claws
    G04946059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

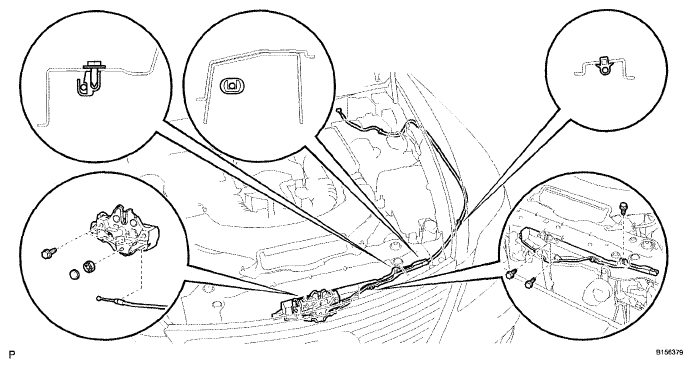

    Fig 5: Identifying Hood Lock Control Cable Assembly Clamps, Bolts And Nut
    G04946060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, disconnect the clamps shown in the illustration.

      HINT:

      Tape the screwdriver tip before use

    2. Pull the cable from the engine room and remove it.
