Luggage Door Hinge Torsion Bar: Removal

1. Remove the 3 clips and door hinge cover.

Fig 1: Identifying Luggage Compartment Door Hinge Cover LH Clips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 3 clips and door hinge cover.

Fig 2: Identifying Luggage Compartment Door Hinge Cover RH Clips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

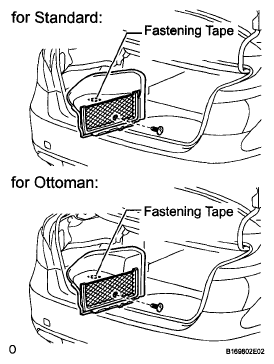

1. Detach the clip, fastening tape and remove the battery service hole cover.

Fig 4: Identifying Battery Service Hole Cover Clip And Fastening Tape

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Pull the battery service hole cover in the direction of arrow 1, then slide it in the direction of arrow 2 to remove it.

Fig 5: Pulling Battery Service Hole Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 rope hooks by pushing the claws in the direction of the arrows in the illustration.

Fig 6: Removing Rope Hooks By Pushing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 4 bolts and 4 rope hooks.

Fig 7: Identifying Bolts And Rope Hooks

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the clip
2. Remove the deck trim side board

Fig 8: Identifying Deck Trim Side Board RH Clip

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Detaching Luggage Compartment Light Claws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, detach the 2 claws and remove the light assembly

   HINT:

   Tape the screwdriver tip before use

2. Disconnect the connector

1. w/o Rear Cooler.
   1. Remove the 4 claws, 3 clips and trim
   Fig 10: Identifying Front Luggage Compartment Trim Cover Claws And Clips (W/O Rear Cooler)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/ Rear Cooler.
   1. Remove the 4 claws, 5 clips and trim
   Fig 11: Identifying Front Luggage Compartment Trim Cover Claws And Clips (W/ Rear Cooler)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 3 clips.
2. Detach the 4 clips and finish plate

Fig 12: Identifying Rear Floor Finish Plate Clips

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 clips.
2. Detach the claw and luggage compartment trim cover.

Fig 13: Identifying Luggage Compartment Trim Cover Assembly LH Clips And Claw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 clips.
2. Detach the claw and luggage compartment trim cover.

Fig 14: Identifying Luggage Compartment Trim Cover Assembly RH Clips And Claw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Detach the 3 clips and luggage door wire.
   Fig 15: Locating Luggage Door Wire Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the luggage door hinge torsion bar RH from the luggage compartment door torsion bar support as shown in the illustration.
   Fig 16: Disconnecting Luggage Door Hinge Torsion Bar RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the luggage door hinge torsion bar RH from the body LH side as shown in the illustration
   Fig 17: Removing Luggage Door Hinge Torsion Bar RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST, disconnect the luggage door hinge torsion bar RH from the luggage door hinge and body RH side as shown in the illustration

SST 09804-24010

Fig 18: Disconnecting Luggage Door Hinge Torsion Bar RH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the luggage door hinge torsion bar LH from the luggage compartment door torsion bar support as shown in the illustration
   Fig 19: Disconnecting Luggage Door Hinge Torsion Bar LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the luggage door hinge torsion bar LH from the body RH side as shown in the illustration
   Fig 20: Removing Luggage Door Hinge Torsion Bar LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, disconnect the luggage door hinge torsion bar LH from the luggage door hinge and body LH side as shown in the illustration

SST 09804-24010

Fig 21: Disconnecting Luggage Door Hinge Torsion Bar LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

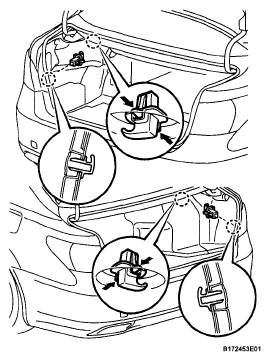

1. Squeeze the two sides of the torsion bar support indicated by the arrows and remove it as shown in the illustration.
   Fig 22: Removing No. 2 Luggage Compartment Door Torsion Bar Support

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
