HEATED OXYGEN SENSOR (for Sensor 2): Removal

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  (See REMOVAL )
  2. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH  (See REMOVAL )
  3. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH  (See REMOVAL )
  4. REMOVE CONSOLE PANEL SUB-ASSEMBLY  (See REMOVAL )
  5. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY  (See REMOVAL )
  6. REMOVE CONSOLE BOX REGISTER ASSEMBLY  (See REMOVAL )
  7. REMOVE CONSOLE BOX  (See REMOVAL )
  8. DISCONNECT HEATED OXYGEN SENSOR CONNECTOR
    1. Disconnect the heated oxygen sensor connector (bank 1).
      Fig 1: Locating Heated Oxygen Sensor Connector (Bank 1)
      G05826731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the heated oxygen sensor connector (bank 2).
      Fig 2: Identifying Heated Oxygen Sensor Connector (Bank 2)
      G05826732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE HEATED OXYGEN SENSOR
    1. Disconnect the grommets from the body.

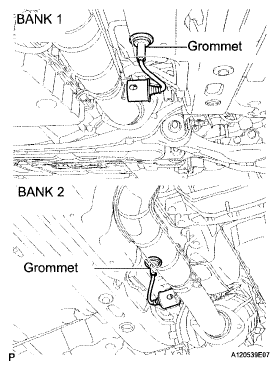

      Fig 3: Identifying Grommets
      G05826733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using the SST, remove the heated oxygen sensors from the exhaust pipe assembly.

      SST 09224-00010

      Fig 4: Identifying Heated Oxygen Sensors
      G05826734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
