HEATED OXYGEN SENSOR (for Sensor 2): Installation

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HEATED OXYGEN SENSOR
1. Using SST, install the heated oxygen sensors.
  SST 09224-00010

  Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

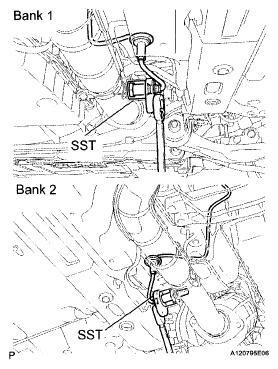

  Fig 1: Identifying Heated Oxygen Sensors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pass the heated oxygen sensor connectors through the floor panel and install the grommets.

  Fig 2: Identifying Heated Oxygen Sensor Connectors And Grommets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT HEATED OXYGEN SENSOR CONNECTOR
1. Connect the heated oxygen sensor connector (bank 2).

  Fig 3: Identifying Heated Oxygen Sensor Connector (Bank 2)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the heated oxygen sensor connector (bank 1)-
INSTALL CONSOLE BOX (See INSTALLATION )
INSTALL CONSOLE BOX REGISTER ASSEMBLY (See INSTALLATION )
INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY (See INSTALLATION )
INSTALL CONSOLE PANEL SUB-ASSEMBLY (See INSTALLATION )

Fig 4: Locating Heated Oxygen Sensor Connector (Bank 1)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 CONSOLE UPPER PANEL GARNISH (See INSTALLATION )
INSTALL NO. 1 CONSOLE UPPER PANEL GARNISH (See INSTALLATION )
INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
