Instrument Panel Safety Pad: Installation

  1. INSTALL INSTRUMENT PANEL STAY
    1. Engage the claw and install the instrument panel stay.

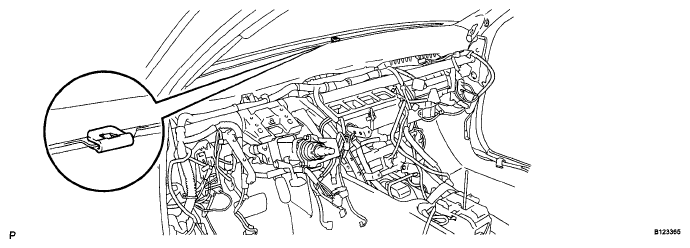

      Fig 1: Identifying Instrument Panel Stay Claw
      G05755541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT PANEL CLIP
    1. Engage the claw and install the 4 instrument panel clips.

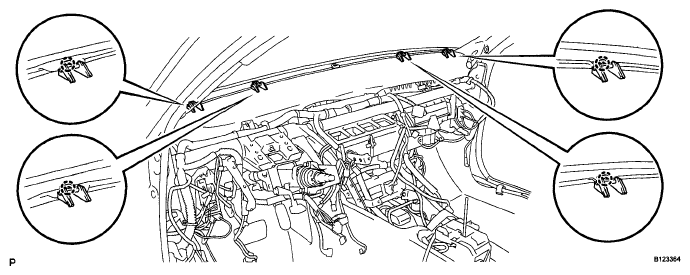

      Fig 2: Identifying Instrument Panel Clips And Screws And Claw
      G05755540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY
    1. Engage the 5 claws.
      NOTE: Do not allow the wire harness to get caught in the claws.
    2. Engage the 2 clamps.
    3. Install the 2 passenger airbag bolts < A > or < B >.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    4. Install the 6 bolts < D > and nut < H >.

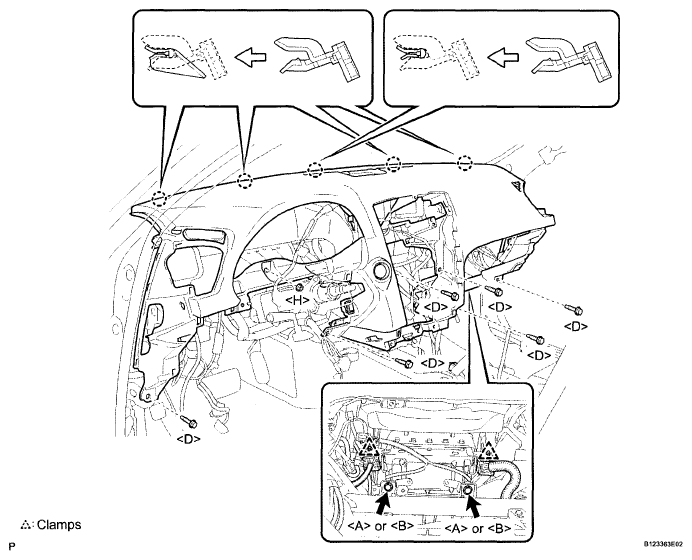

      Fig 3: Identifying Instrument Panel Safety Pad Assembly Claws And Clamps
      G05833005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Engage the 2 claws and install the cooler thermistor.
    6. Engage the clamps.
    7. Connect the connectors and install the instrument panel safety pad assembly.

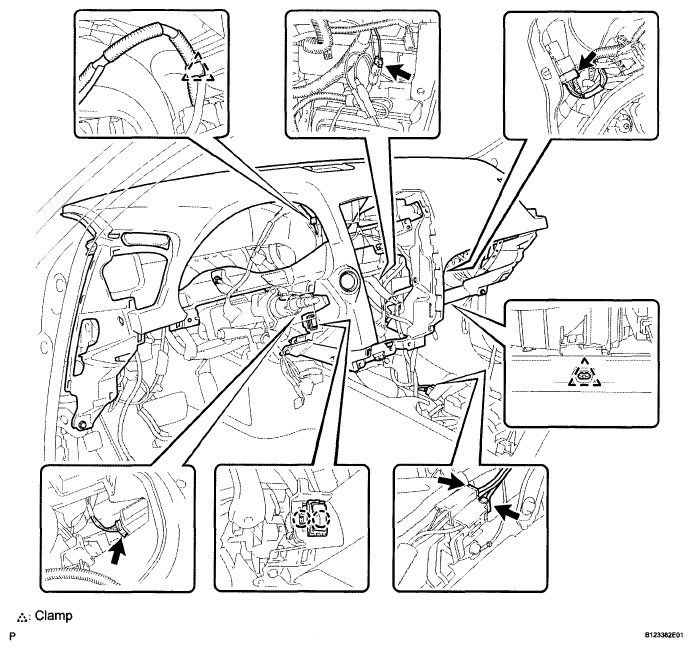

      Fig 4: Locating Instrument Panel Safety Pad Assembly Claws, Connectors And Clamps
      G05832977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT PASSENGER AIRBAG CONNECTOR  (See INSTALLATION )
  5. INSTALL NO. 2 CONSOLE BOX DUCT (for Manual Transmission)
    1. Install the No. 2 console box duct with the clip.
      Fig 5: Identifying No. 2 Console Box Duct Clip (For Manual Transmission)
      G05832976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 1 CONSOLE BOX DUCT (for Automatic Transmission)
    1. Install the No. 1 console box duct with the clip.
      Fig 6: Identifying No. 1 Console Box Duct Clip (For Automatic Transmission)
      G05755537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 2 CONSOLE BOX DUCT (for Automatic Transmission)
    1. Install the No. 2 console box duct with the 2 clips.
      2. Fig 7: Identifying No. 2 Console Box Duct Clips (For Automatic Transmission)
      G05755536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FRONT STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)  (See INSTALLATION )
  9. INSTALL NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY
    1. Engage the 7 claws and install the No. 3 instrument panel speaker panel sub-assembly.
      Fig 8: Identifying No. 3 Instrument Panel Speaker Panel Sub-Assembly Claws
      G05833010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connector.
    2. Engage the 4 claws and 2 clips, and install the No. 2 instrument panel register assembly.
      Fig 9: Identifying No. 2 Instrument Panel Register Assembly Claws And Clips
      G05755575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connector.
    2. Engage the 7 claws and 2 clips, and install the No. 1 instrument panel register assembly.
      3. Fig 10: Identifying No. 1 Instrument Panel Register Assembly Claws And Clips
      G05755576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
  13. INSTALL FRONT PILLAR GARNISH RH
  14. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Connect the connectors.
    2. Engage the 2 claws.
    3. Install the glove compartment door assembly with the 5 screws.
      4. Fig 11: Identifying Glove Compartment Door Assembly Screws And Claws
      G05755532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  16. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Engage the 4 clips and install the No. 2 instrument panel under cover sub-assembly.
      Fig 12: Identifying No. 2 Instrument Panel Under Cover Sub-Assembly Clips
      G05755578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL SIDE INSTRUMENT PANEL RH
    1. Engage the 5 claws and 3 clips, and then install the side instrument panel RH.
      Fig 13: Identifying Side Instrument Panel RH Claws And Clips
      G05755579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL FRONT DOOR OPENING TRIM COVER RH
    1. Engage the 6 claws and install the front door opening trim cover RH.
      2. Fig 14: Identifying Front Door Opening Trim Cover RH Claws
      G05832967Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination)
  20. INSTALL FRONT DOOR SCUFF PLATE RH (w/ Illumination)
  21. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connectors.
    2. Engage the 2 claws and install the combination meter assembly.
      Fig 15: Identifying Combination Meter Assembly Claws
      G05755580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Install the instrument cluster finish panel sub-assembly with the 2 screws and 2 clips.
      2. Fig 16: Identifying Instrument Cluster Finish Panel Sub-Assembly Screws And Clips
      G05755581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
  24. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Connect the connectors.
    2. Engage the 7 clips and install the lower instrument panel finish panel sub-assembly.
      Fig 17: Identifying Lower Instrument Panel Finish Panel Sub-Assembly Clips
      G05832964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connectors.
    2. Insert the No. 1 instrument panel under cover sub-assembly into the guide as shown in the illustration.
    3. Engage the 2 claws.
    4. Install the No. 1 instrument panel under cover sub-assembly with the 2 screws < E >.
      Fig 18: Inserting No. 1 Instrument Panel Under Cover Sub-Assembly Into Guide
      G05833020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. INSTALL SIDE INSTRUMENT PANEL LH
    1. Engage the 5 claws and 3 clips, and then install the side instrument panel LH.
      Fig 19: Identifying Side Instrument Panel LH Claws And Clips
      G05755584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL FRONT DOOR OPENING TRIM COVER LH
    1. Engage the 6 claws and install the front door opening trim cover LH.
    Fig 20: Identifying Front Door Opening Trim Cover LH Claws
    G05832961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. INSTALL FRONT DOOR SCUFF PLATE LH (w/o Illumination)  (See INSTALLATION )
  29. INSTALL FRONT DOOR SCUFF PLATE LH (w/ Illumination)  (See INSTALLATION )
  30. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  31. INSTALL STEERING COLUMN COVER (for Manual Tilt and Telescopic)  (See INSTALLATION )
  32. INSTALL STEERING COLUMN COVER (for Power Tilt and Power Telescopic)  (See INSTALLATION )
  33. ADJUST SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
  34. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
  35. INSTALL STEERING PAD  (See INSTALLATION )
  36. INSTALL LOWER NO. 3 STEERING WHEEL COVER  (See INSTALLATION )
  37. INSTALL LOWER NO. 2 STEERING WHEEL COVER  (See INSTALLATION )
  38. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)  (See INSTALLATION )
  39. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)  (See INSTALLATION )
  40. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL
    1. Engage the 4 claws and install the center lower instrument cluster finish panel.
      Fig 21: Identifying Center Lower Instrument Cluster Finish Panel Claws
      G05755524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connectors.
    2. Engage the 11 claws and install the No. 3 instrument panel register assembly.
      Fig 22: Identifying No. 3 Instrument Panel Register Assembly Claws
      G05755586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. INSTALL CONSOLE BOX
    1. Engage the 2 claws and 2 clips.
      Fig 23: Identifying Console Box Claws And Clips
      G05755600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 bolts < C >.
      Fig 24: Locating Console Box Bolts
      G05755599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 bolts < C >.
    4. Connect the connector.
      Fig 25: Locating Console Box Bolts And Connector
      G05832954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the connectors.
    6. Engage the 2 clamps.
    7. Install the 2 bolts < C >.
      Fig 26: Locating Console Box Bolts, Connectors And Clamps
      G05832953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  43. INSTALL CONSOLE BOX REGISTER ASSEMBLY
    1. Engage the 2 claws and 4 clips, and then install the console box register assembly.
    2. Install the rear ash receptacle assembly.
      Fig 27: Identifying Console Box Register Assembly Claws And Clips
      G05755614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY
    1. Connect the connectors.
    2. Insert the protruding parts of the front ash receptacle sub-assembly into the 2 guide holes as shown in the illustration.
      Fig 28: Inserting Protruding Parts Of Front Ash Receptacle Sub-Assembly Into Guide Holes
      G05833030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the front ash receptacle sub-assembly with the 2 screws < F >.
      Fig 29: Identifying Front Ash Receptacle Sub-Assembly Screws
      G05832950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
    1. Engage the 6 clips.
      Fig 30: Identifying Front Console Panel Sub-Assembly Clips (For Manual Transmission)
      G05833032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Close the snap.
      Fig 31: Identifying Snap
      G05832948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)
    1. Engage the 7 claws and 2 clips.
      Fig 32: Identifying Rear Console Panel Sub-Assembly Claws And Clips (For Manual Transmission)
      G05833034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Close the snap.
      Fig 33: Identifying Snap
      G05832946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)
    1. Connect the connectors.
    2. Engage the 8 clips and install the console panel sub-assembly.
      Fig 34: Identifying Console Panel Sub-Assembly Clips (For Automatic Transmission)
      G05833036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  48. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)
    1. Engage the claw and 2 clips, and then install the upper No. 2 console panel garnish.
      Fig 35: Installing Upper No. 2 Console Panel Garnish (For Automatic Transmission)
      G05833037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  49. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)
    1. Engage the claw and 2 clips, and then install the upper No. 1 console panel garnish.
      Fig 36: Installing Upper No. 1 Console Panel Garnish (For Automatic Transmission)
      G05833038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  50. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)
  51. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
  52. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  53. PERFORM INITIALIZATION
    NOTE: Some systems need initialization after reconnecting the cable to the negative battery terminal (See INITIALIZATION ).
  54. INSPECT STEERING PAD  (See INSTALLATION )
  55. INSPECT SRS WARNING LIGHT

    (See DIAGNOSIS SYSTEM )
