Washer Nozzle: Adjustment

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE WASHER NOZZLE SUB-ASSEMBLY  (See REMOVAL  )
  2. ADJUST WASHER NOZZLE SUB-ASSEMBLY
    1. Select a washer nozzle so that the contact area is within the standard Replace the washer nozzle with the selected one

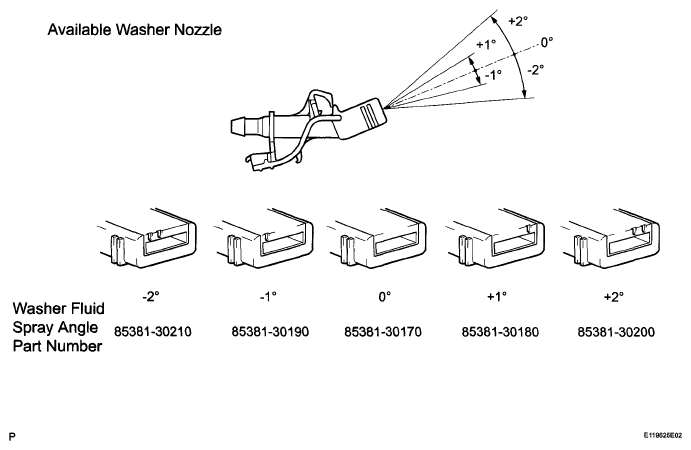

      Fig 1: Identifying Washer Fluid Spray Angle Part Number
      G05756341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL WASHER NOZZLE SUB-ASSEMBLY  (See ADJUSTMENT  )
