Roof Drip Side Finish Molding: Installation
WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL NO. 1 ROOF DRIP SIDE FINISH MOLDING CLIP NOTE:
- If reusing the clips, do not remove the double-sided tape remaining on the clips and where the clips will be installed on the body.
- If installing new clips, remove the double-sided tape remaining where the clips will be installed on the body and clean the body with a non-residue type solvent.
- Apply a 2 to 3 mm (0 0787 to 0 118 in) bead of adhesive (3M DP-105 or equivalent) to new No. 1 roof drip side finish molding clips
HINT.
Adhesive strength (tensile strength) 13 7 MPa (140 kgf/cm2 ) or more (when the temperature is 23°C (73°F)
- Press and install the No. 1 roof drip side finish molding clips

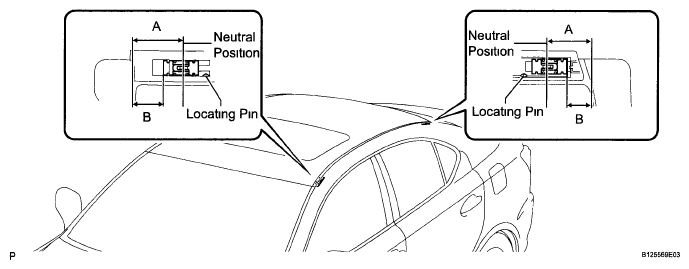

- Install the clips to the positions on the roof panel shown in the illustration Determine the locations and firmly press and install the No. 1 roof drip side finish molding clips after lightly applying adhesive (3M DP-105 or equivalent)
- Install the roof drip side finish molding center when 20 minutes or more have elapsed after pressing and installing the No. 1 roof drip side finish molding clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard dimension
AREA AND DIMENSION SPECIFICATIONArea Dimension A 30 6 mm (1 20 in) B 19 6 mm (0 772 in) HINT.
- Initial hardening time 20 minutes
- Complete hardening time 48 hours

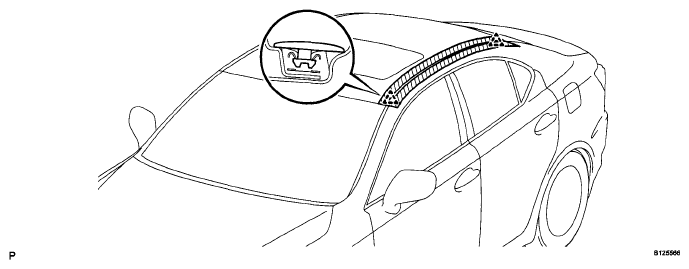

- INSTALL ROOF DRIP CENTER SIDE FINISH MOLDING
- Engage the 2 clips and install the roof drip center side finish molding.

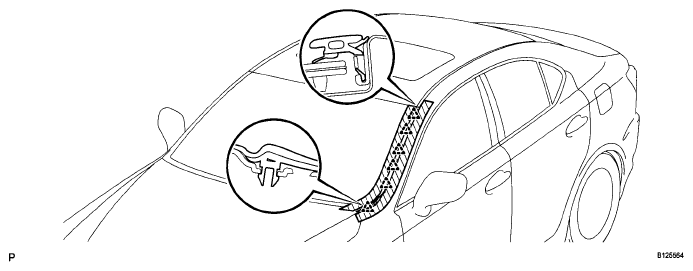

- INSTALL NO. 1 WINDSHIELD OUTSIDE MOLDING CLIP
- Install the 5 No. 1 windshield outside molding clips.
- INSTALL ROOF DRIP SIDE FINISH MOLDING
- Engage the 2 clips and install the center roof drip side finish molding
