Front Seat Cushion Heater: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER
    1. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with 16 new hog rings

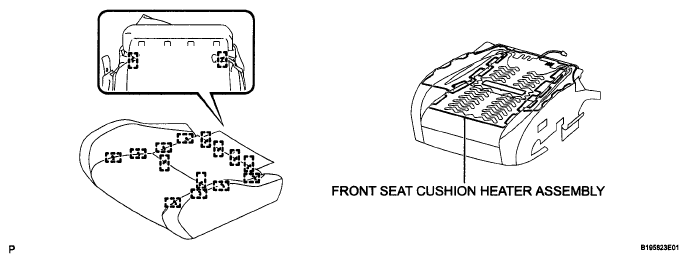

      Fig 1: Installing Seat Cushion Cover To Seat Cushion Pad With Hog Rings
      G05755084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to minimize wrinkles as much as possible.
  2. INSTALL FRONT SEAT CUSHION COVER WITH PAD  (See REASSEMBLY  )
  3. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY  (See REASSEMBLY  )
  4. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB  (See REASSEMBLY  )
  5. INSTALL RECLINING POWER SEAT SWITCH KNOB  (See REASSEMBLY  )
  6. INSTALL FRONT SEAT INNER BELT ASSEMBLY  (See INSTALLATION )
  7. INSTALL FRONT SEAT ASSEMBLY  (See INSTALLATION  )
  8. INSTALL REAR INNER SEAT TRACK BRACKET COVER  (See INSTALLATION  )
  9. INSTALL REAR OUTER SEAT TRACK BRACKET COVER  (See INSTALLATION  )
  10. INSTALL FRONT INNER SEAT TRACK BRACKET COVER  (See INSTALLATION  )
  11. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER  (See INSTALLATION  )
  12. INSTALL FRONT SEAT HEADREST ASSEMBLY
  13. INSPECT SRS WARNING LIGHT

    HINT.

    Inspect the SRS warning light (See DIAGNOSIS SYSTEM ).

  14. INSPECT FRONT SEAT ASSEMBLY  (See INSTALLATION  )
