Front Seat Inner Belt Assembly: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT SEAT INNER BELT ASSEMBLY
1. Install the front seat inner belt assembly with the nut.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE: Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the front seat adjuster.

  Fig 1: Identifying Front Seat Inner Belt Assembly And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for Driver Seat:
  1. Connect the connector and engage the 3 clamps.
3. for Passenger Seat:
  1. Connect the connector and engage the 4 clamps.

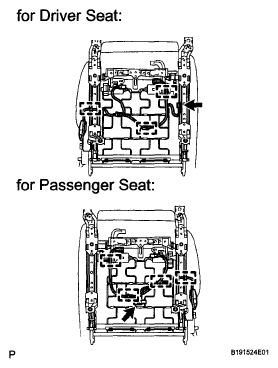

  Fig 2: Identifying Front Seat Inner Belt Assembly Connector And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT ASSEMBLY (See INSTALLATION )
INSTALL REAR INNER SEAT TRACK COVER (See INSTALLATION )
INSTALL REAR OUTER SEAT TRACK COVER (See INSTALLATION )
INSTALL FRONT INNER SEAT TRACK BRACKET COVER (See INSTALLATION )
INSTALL FRONT OUTER SEAT TRACK BRACKET COVER (See INSTALLATION )
INSTALL FRONT SEAT HEADREST ASSEMBLY
INSPECT FRONT SEAT ASSEMBLY
(See INSTALLATION )
INSPECT SRS WARNING LIGHT
Inspect the SRS warning light (See DIAGNOSIS SYSTEM ).
