Spiral Cable: Removal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    CAUTION: Be sure to read Precaution thoroughly before servicing (See PRECAUTION  ).
  2. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL  (See REMOVAL )
  4. REMOVE LOWER NO. 3 STEERING WHEEL COVER  (See REMOVAL  )
  5. REMOVE LOWER NO. 2 STEERING WHEEL COVER  (See REMOVAL  )
  6. REMOVE STEERING PAD  (See REMOVAL  )
  7. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  8. REMOVE STEERING COLUMN COVER  (See REMOVAL )
  9. REMOVE SPIRAL CABLE WITH STEERING ANGLE SENSOR
    1. Disconnect the connectors from the spiral cable with steering angle sensor
      NOTE: When disconnecting the airbag connector, take care not to damage the airbag wire harness.
    2. Disengage the 3 claws and remove the spiral cable with steering angle sensor

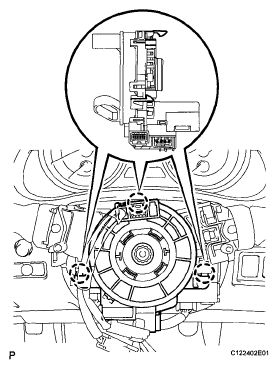

      Fig 1: Identifying Claws And Spiral Cable With Steering Angle Sensor
      G05757168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE SPIRAL CABLE
    1. Disengage the 6 claws and 2 pins, and remove the spiral cable from the steering angle sensor.
    Fig 2: Identifying Claws And Pins
    G05757169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
