Curtain Shield Airbag Assembly: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY
1. Check that the engine switch is off
2. Check that the cable is disconnected from the negative (-) battery terminal
  CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
3. Temporarily install the curtain shield airbag assembly with the 7 hooks

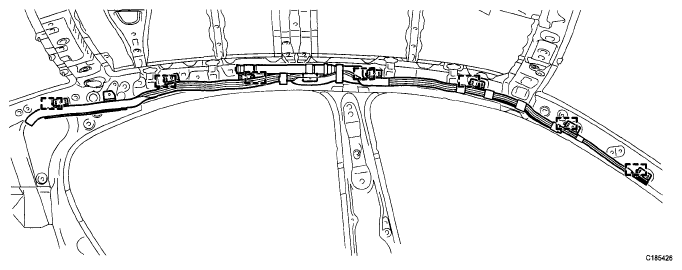

  Fig 1: Identifying Hooks And Curtain Shield Airbag Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not twist the curtain shield airbag assembly when installing it.
4. Install the 2 clams

  Fig 2: Locating Clams
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

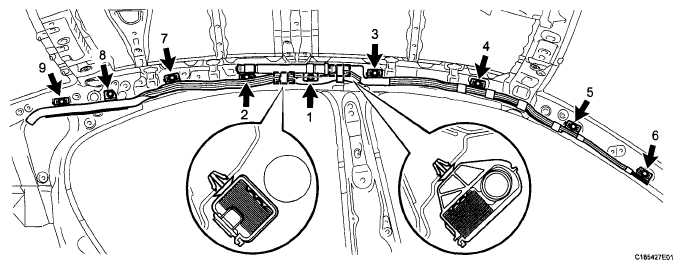

5. Install 9 new bolts
  Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

  HINT

  Tighten the bolt in order from 1 to 9
6. Connect the curtain shield airbag connector.
  NOTE: When connecting the airbag connector, take care not to damage the airbag wire harness.
INSTALL ROOF HEADLINING ASSEMBLY
HINT:

Refer to the procedure from Install Roof Headlining Assembly (See INSTALLATION )
