Headlight Assembly: Removal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  2. REMOVE COOL AIR INTAKE DUCT SEAL  (See REMOVAL )
  3. REMOVE RADIATOR GRILLE PROTECTOR  (See REMOVAL )
  4. REMOVE FRONT BUMPER ASSEMBLY  (See REMOVAL )
  5. REMOVE ENGINE ROOM SIDE COVER LH (for LH Side)  (See REMOVAL )
  6. REMOVE FRONT UPPER FENDER PROTECTOR LH (for LH Side)  (See REMOVAL )
  7. REMOVE ENGINE ROOM SIDE COVER RH (for RH Side)  (See REMOVAL )
  8. REMOVE FRONT UPPER FENDER PROTECTOR RH (for RH Side)  (See REMOVAL )
  9. REMOVE HEADLIGHT ASSEMBLY

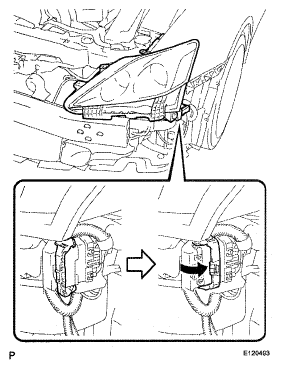

    1. Disconnect the connector as shown in the illustration
      Fig 1: Disconnecting Connector
      G05320418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts
    3. Disengage the headlight bracket pin and remove the headlight assembly
      Fig 2: Identifying Headlight Bolts
      G05756478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
