Differential Mount Cushion: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR NO. 1 DIFFERENTIAL MOUNT CUSHION
1. Using SST, install a new rear No. 1 differential mount cushion.

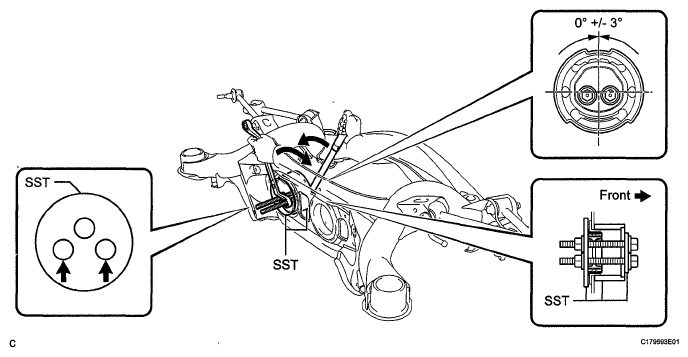

  Fig 1: Identifying Rear No. 1 Differential Mount Cushion With SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09570-24011
  NOTE:
  - Be sure to use the correct combination of SST.
  - Apply a small amount of grease to the threads of SST before use.
  - Temporarily install the rear No. 1 differential mount cushion to the rear suspension member in order to prevent it from tilting and install SST.
  - Make sure that SST contacts the entire circumference of the rear No. 1 differential mount cushion.
  - Do not slant the bolts of SST.
  - Tighten the 2 bolts of SST equally into the 2 holes of the rear No. 1 differential mount cushion.
INSTALL REAR NO. 2 DIFFERENTIAL MOUNT CUSHION
1. Using SST, install a new rear No. 2 differential mount cushion.

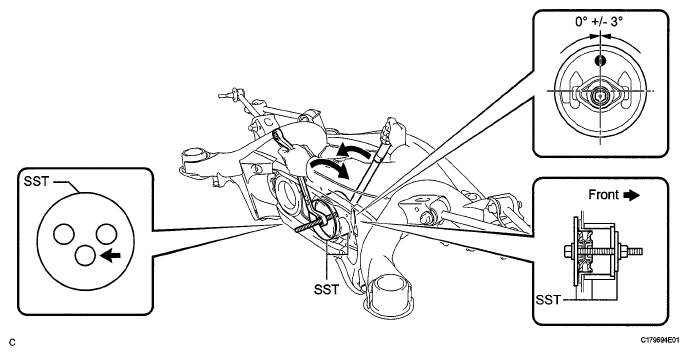

  Fig 2: Identifying Rear No. 2 Differential Mount Cushion With SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09570-24011
  NOTE:
  - Be sure to use the correct combination of SST.
  - Apply a small amount of grease to the threads of SST before use.
  - Temporarily install the rear No. 2 differential mount cushion to the rear suspension member in order to prevent it from tilting and install SST.
  - Make sure that SST contacts the entire circumference of the rear No. 2 differential mount cushion.
  - Do not slant the bolts of SST.
INSTALL REAR SUSPENSION MEMBER
HINT.

Refer to the procedure from Install Rear Suspension Member (See INSTALLATION ).
