Rear Spoiler: Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR SPOILER SUB-ASSEMBLY

HINT:

When installing the spoiler, heat the vehicle body and spoiler using a heat light.

Heating Temperature

HEATING TEMPERATURE SPECIFICATION

Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Spoiler	20 to 30°C (68 to 86°F)

Clean the vehicle body surface.
1. Using a heat light, heat the vehicle body surface
2. Remove the double-sided tape from the vehicle body.
3. Wipe off any tape adhesive residue with cleaner.
Clean the spoiler (if reusing the spoiler)
1. Using a heat light, heat the spoiler.
2. Remove the double-sided tape from the spoiler.
3. Wipe off any tape adhesive residue with cleaner.
4. Apply new double-sided tape to the spoiler.
Install the spoiler.
1. Using a heat light, heat the vehicle body and spoiler.
2. Remove the peeling paper from the face of the spoiler
  HINT.

  After removing the peeling paper, keep the exposed adhesive free from foreign matter.
3. Engage the 5 clips and install the rear spoiler sub-assembly

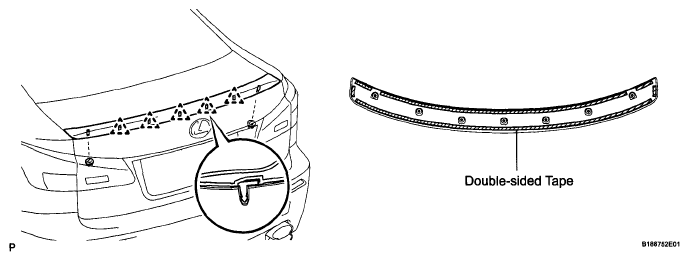

  Fig 1: Identifying Rear Spoiler Sub-Assembly Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install the 2 nuts.

INSTALL LUGGAGE COMPARTMENT DOOR COVER (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE (See INSTALLATION )
INSTALL LUGGAGE LOCK CONTROL CABLE PLATE (See INSTALLATION )
INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP (See INSTALLATION )
