Stereo Component Amplifier: Removal

  1. REMOVE LUGGAGE COMPARTMENT TRIM COVER
  2. REMOVE DECK SIDE TRIM BOX RH
  3. REMOVE DECK SIDE TRIM BOX LH
  4. REMOVE ROPE HOOK ASSEMBLY
    1. Remove the 3 bolts and 3 rope hook assemblies.
      2. Fig 1: Identifying Rope Hook Assemblies And Bolts
      G05828233Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR LUGGAGE COMPARTMENT TRIM COVER  (See REMOVAL )
  6. REMOVE ROOM LIGHT ASSEMBLY  (See REMOVAL )
  7. REMOVE ROPE HOOK  (See REMOVAL )
  8. REMOVE FRONT LUGGAGE COMPARTMENT TRIM COVER  (See REMOVAL )
  9. REMOVE LUGGAGE COMPARTMENT TRIM HOOK
    1. Remove the screw and luggage compartment trim hook.
    Fig 2: Identifying Luggage Compartment Trim Hook And Screw
    G05753421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE SIDE LUGGAGE COMPARTMENT TRIM COVER
    1. Using a clip remover, remove the 3 clips and side luggage compartment trim cover.
  11. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET
    1. Disconnect the connectors.
      Fig 3: Identifying Side Luggage Compartment Trim Cover And Screw
      G05828235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

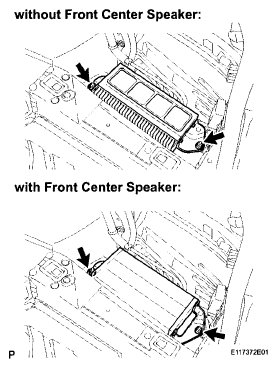

    2. Remove the 2 nuts and the stereo component amplifier assembly with bracket.
      Fig 4: Locating Stereo Component Amplifier Assembly With Bracket
      G05828236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 clips and remove the amplifier cover.
    Fig 5: Locating Amplifier Cover And Clips
    G05753424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 AMPLIFIER BRACKET
    1. Remove the 2 bolts and the No. 1 amplifier bracket.
    Fig 6: Locating No. 1 Amplifier Bracket And Bolts
    G05828238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE NO. 2 AMPLIFIER BRACKET
    1. Remove the 2 bolts and the No. 2 amplifier bracket.
      2. Fig 7: Locating No. 2 Amplifier Bracket And Bolts
      G05828239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY
