Back Door Garnish: Removal

  1. REMOVE BACK DOOR TRIM PANEL ASSEMBLY UPPER  (See DISASSEMBLY )
  2. REMOVE BACK DOOR GARNISH
    1. Disengage the back door opener switch connector.
    2. Remove the 5 bolts, clip and garnish.

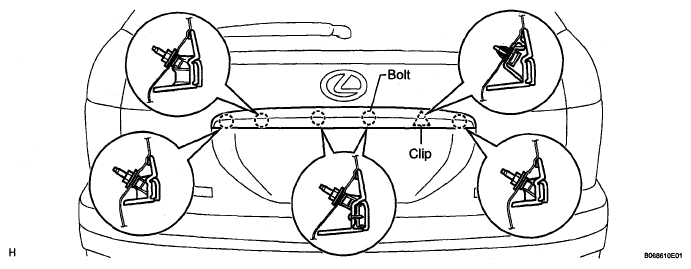

    Fig 1: Identifying Bolts, Clip And Garnish
    G05281719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY
    1. Remove the 2 screws and back door opener switch assembly.
