REAR SEAT ASSEMBLY (for Power Seat): Reassembly

CAUTION: Wear protective gloves. Sharp areas on the seatback spring, seat adjuster and seat cushion spring may injure your hands.

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

INSTALL REAR ARMREST WIRE
1. Install the 4 wire harness clamps and connect the connector.

  Fig 1: Locating Wire Harness Clamps And Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR CURTAIN SWITCH ASSEMBLY
1. Connect the connector.
2. Install the curtain switch with the 2 screws.

  Fig 2: Identifying Curtain Switch Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the rear No. 2 seat center armrest box with the 8 screws.

  Fig 3: Identifying Rear No. 2 Seat Center Armrest Box Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY
1. Install the cup holder with the 2 screws.

  Fig 4: Installing Cup Holder Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR POWER SEAT MODULE SWITCH ASSEMBLY (See REMOVAL )
INSTALL REAR NO. 1 SEAT CENTER ARMREST PANEL
1. Install the No. 1 center armrest panel to the No. 2 center armrest panel with the 3 screws.

  Fig 5: Locating No. 1 Center Armrest Panel Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the 2 connectors.
3. Attach the 12 claws and install the No. 2 center armrest panel (with No. 1 panel).

  Fig 6: Installing No. 2 Center Armrest Panel Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the screw.
5. Install the armrest door lock seal.
6. Attach the claw and install the armrest door.

  Fig 7: Installing Armrest Door Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the rear seat armrest hole board with the 2 screws.

  Fig 8: Locating Rear Seat Armrest Hole Board Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CENTER ARMREST ASSEMBLY
1. Install the center armrest with the 2 nuts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
2. Install the wire harness clamp.

  Fig 9: Locating Center Armrest Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER SEATBACK FRAME COVER
1. Attach the 2 claws and install the cover.

  Fig 10: Identifying Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
1. Install the center headrest with the 2 bolts.
  Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  Fig 11: Locating Center Headrest Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CENTER SEAT CUSHION COVER

Fig 12: Installing Center Seat Cushion Cover Hog Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the seat cushion frame to the seat cushion pad.
2. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, avoid wrinkling the cover.
INSTALL SEAT CLIMATE CONTROL BLOWER RH (w/ Climate Control Seat System)
HINT:

Use the same procedures described for the LH side.
INSTALL SEAT CLIMATE CONTROL CONTROLLER RH (w/ Climate Control Seat System)
HINT:

Use the same procedures described for the LH side.
INSTALL REAR SEAT BELT INNER ANCHOR BRACKET ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
INSTALL REAR INNER SEAT BELT ASSEMBLY CENTER (See INSTALLATION )
INSTALL REAR SEAT INNER BELT ASSEMBLY RH (See INSTALLATION )
INSTALL REAR SEAT WIRE RH
HINT:

Use the same procedures described for the LH side.
INSTALL REAR SEATBACK CLIMATE CONTROL BLOWER RH (w/ Climate Control Seat System)
HINT:

Use the same procedures described for the LH side.
INSTALL REAR SEATBACK COVER SUB-ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
INSTALL REAR SEATBACK COVER WITH PAD RH
HINT:

Use the same procedures described for the LH side.
INSTALL REAR SEAT CLIMATE CONTROL ECU RH (w/ Climate Control Seat System)
HINT:

Use the same procedures described for the LH side.
INSTALL POSITION CONTROL ECU RH
HINT:

Use the same procedures described for the LH side.
INSTALL REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY
HINT:

Use the same procedures described for the LH side.
INSTALL REAR SEAT HEADREST SUPPORT RH
HINT:

Use the same procedures described for the LH side.
INSTALL REAR SEAT HEADREST ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
INSTALL REAR SEAT SHOULDER BELT GUIDE ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
INSTALL REAR SEAT CUSHION COVER SUB-ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
INSTALL REAR SEAT CUSHION SPRING ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
INSTALL SEAT CUSHION CLIMATE BLOWER SUB-ASSEMBLY LH (w/ Climate Control Seat System)
1. Install the climate blower with the 3 nuts.

  Fig 13: Identifying Climate Blower Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT CLIMATE CONTROL CONTROLLER LH (w/ Climate Control Seat System)
1. Attach the claws and install the climate controller.
2. Install the 2 screws.
3. Connect the 2 connectors.

  Fig 14: Identifying Climate Controller Claws, Screws And Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the wire harness clamp.

  Fig 15: Identifying Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT INNER BELT ANCHOR BRACKET ASSEMBLY LH
1. Install the anchor bracket with the nut.
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  Fig 16: Identifying Anchor Bracket Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT INNER BELT ASSEMBLY LH (See INSTALLATION )
INSTALL REAR SEAT WIRE LH
INSTALL SEATBACK CLIMATE BLOWER SUB-ASSEMBLY LH (w/ Climate Control Seat System)
1. Attach the 3 hooks and install the climate controller and blower.

  Fig 17: Identifying Climate Controller And Blower Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 3 nuts and connect the 2 connectors.

  Fig 18: Locating Climate Controller And Blower Nuts And Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK COVER SUB-ASSEMBLY LH
1. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, avoid wrinkling the cover.
  Fig 19: Installing Seatback Cover Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEATBACK COVER WITH PAD LH
1. Using hog ring pliers, install new hog rings and attach the hooks.
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, avoid wrinkling the cover.

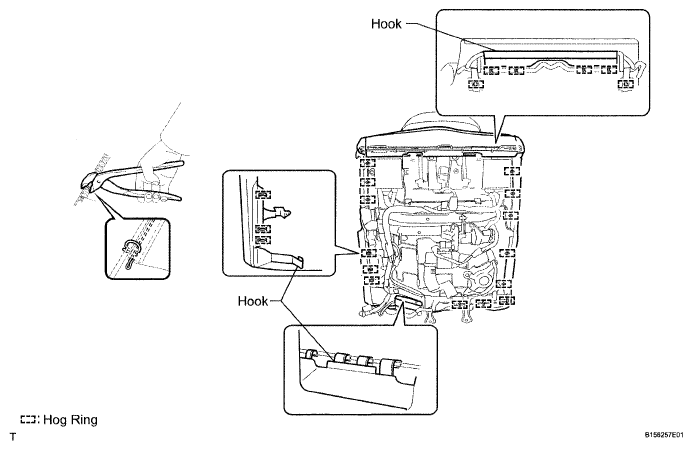

  Fig 20: Installing Seatback Cover With Pad LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the hooks of seatback cover to the seatback spring.

  Fig 21: Identifying Seatback Cover Hooks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. w/ Climate Control Seat System:
  1. Connect the connector.

    Fig 22: Locating Climate Control Seat System Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Fix the wire harness in place with the clip.
4. Install the 2 seatback brackets with the nut.
  Torque: 5.6 N*m (57 kgf*cm, 50 in.*lbf)

  Fig 23: Locating Seatback Brackets Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT CLIMATE CONTROL ECU LH (w/ Climate Control Seat System)
1. Install the climate control ECU with the 2 bolts.
2. Connect the 2 connectors.

  Fig 24: Locating Climate Control ECU Connectors Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL POSITION CONTROL ECU LH
1. Install the position control ECU with the 2 bolts.
2. Connect the 2 connectors.

  Fig 25: Locating Position Control ECU Connectors Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 SEAT HEADREST ADJUSTER SUB-ASSEMBLY LH
1. Install the headrest adjuster.
2. Attach the 2 claws and install the 2 bolts.
3. Connect the connector.
4. Install the wire harness clamp.

  Fig 26: Identifying Rear No. 1 Seat Headrest Adjuster Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT HEADREST SUPPORT LH
1. Attach the 4 claws and install the 2 headrest supports.

  Fig 27: Identifying Headrest Supports Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT HEADREST ASSEMBLY LH
1. Install the headrest with the 2 pins.

  Fig 28: Locating Headrest Pins
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SHOULDER BELT GUIDE ASSEMBLY LH
1. Install the shoulder belt guide with the 3 screws.

  Fig 29: Identifying Shoulder Belt Guide Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CUSHION COVER SUBASSEMBLY LH
1. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, avoid wrinkling the cover.
  Fig 30: Installing Rear Seat Cushion Cover Subassembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT CUSHION SPRING ASSEMBLY LH
1. Using hog ring pliers, install the seat cushion frame to the seat pad (with cover) with new hog rings.
  NOTE:
  - Be careful not to damage the cover.
  - When installing the hog rings, avoid wrinkling the cover.
  Fig 31: Installing Rear Seat Cushion Spring Assembly LH
