REAR DOOR WINDOW FRAME MOULDING (for Long Body): Removal

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH (See REMOVAL )
REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH (See REMOVAL )
REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
1. w/o Rear Door Sunshade:
  Remove the rear door trim board (see REMOVAL ).
2. w/ Rear Door Sunshade:
  Remove the rear door trim board (see REMOVAL ).
REMOVE REAR DOOR TRIM COVER LH (See REMOVAL )
REMOVE REAR DOOR FRAME GARNISH LH (See REMOVAL )
REMOVE REAR DOOR NO. 3 WEATHERSTRIP LH (See REMOVAL )
REMOVE REAR DOOR NO. 2 WEATHERSTRIP LH (See REMOVAL )
REMOVE REAR DOOR WINDOW FRAME MOULDING UPPER LH
1. Put a 4 mm (0.157 in.) drill bit into a drill.
2. Wind tape around the drill bit approximately 5 mm (0.197 in.) from the tip of the drill, as shown in the illustration.
  HINT:

  Tape the 4 mm (0.157 in.) drill bit to prevent the drill bit from going too deep.
3. Lightly press the drill against each of the 7 rear door window frame moulding rivets labeled (A) and (B) shown in the illustration, and drill off each rivet's flange.
  HINT:
  - The rivets labeled (A) are the installation rivets of the rear door window frame moulding.
  - The rivets labeled (B) are the installation rivets for both the rear door window frame moulding and rear door belt moulding.
    NOTE:
    Pressing the drill too firmly will cause the rivet to turn and result in the rivet not being drilled through.

    Do not pry the rivets with the drill, because this may cause damage to the installation holes of the rivets or the drill bit.

    Be careful of the drilled rivets as they may become hot.
4. Using a vacuum cleaner, remove the rivet fragments and shavings from the drilled areas.
5. Detach the clip and remove the window frame moulding.

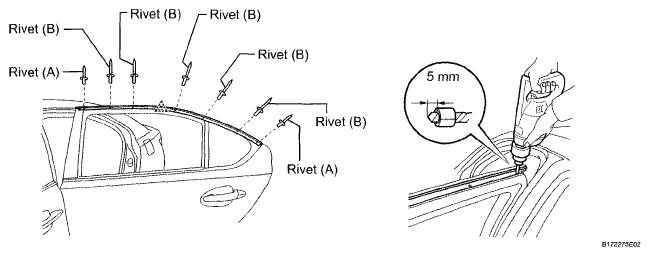

  Fig 1: Drilling Against Rear Door Window Frame Moulding Rivets
